Z-type bucket elevator: efficient and intelligent material conveying solution

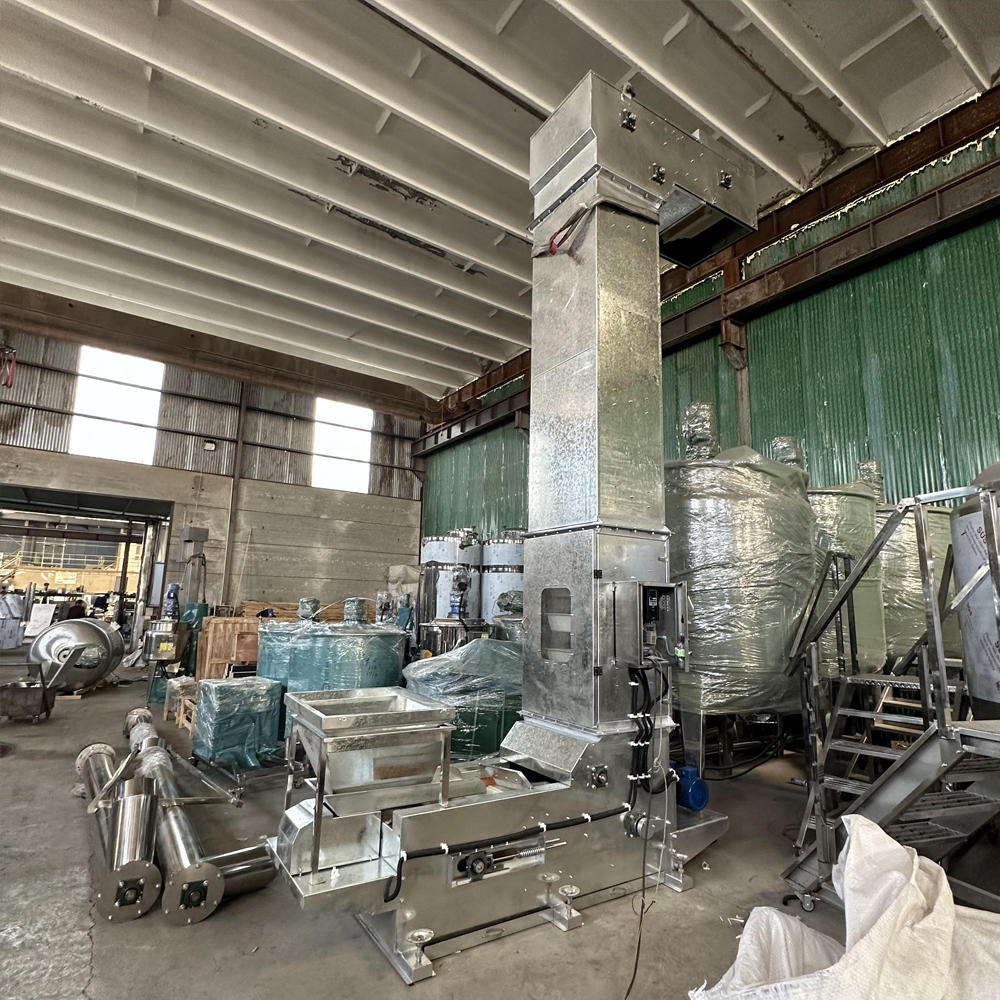

1、 Introduction to Z-type bucket elevator

The Z-type bucket elevator is an efficient and enclosed material conveying equipment that uses a horizontal vertical horizontal conveying method and a "Z" - shaped structure for conveying. It is widely used in industries such as food, pharmaceuticals, chemicals, agriculture, plastics, and electronics.

This equipment is mainly used for conveying granular, powdery, and small block materials, such as grain, feed, candy, medicine, chemical granules, seeds, etc. Its design can avoid material damage, reduce dust pollution, and improve conveying efficiency, which has significant advantages in industries that require refined operations or prevent cross contamination.

2、 Working principle of Z-type bucket elevator

The Z-type bucket elevator consists of a hopper, a chain (or belt), a drive device, an inlet, an outlet, and a frame. The basic working principle is as follows:

Feeding: The material enters the hopper through the feeding port, and the hopper runs along the conveyor chain in an intermittent or continuous manner.

Vertical conveying: The hopper is lifted vertically along the conveyor chain to ensure that the material rises smoothly and without damage.

Horizontal conveying: After the material reaches the predetermined height, it moves along the horizontal track and unloads at the designated discharge port.

Loop operation: The hopper continues to return to the feed inlet, repeating in a loop to achieve continuous conveying.

The device adopts a closed structure, effectively preventing dust leakage and ensuring clean and safe transportation process.

3、 Main features of Z-type bucket elevator

① Smooth conveying and low material loss - materials will not be strongly impacted or squeezed during the entire conveying process, especially suitable for fragile materials such as fragile food, pharmaceutical particles, etc.

② Multi point feeding and discharging - Multiple feeding and discharging ports can be designed according to production needs to achieve multi station conveying and improve production efficiency.

③ Sealed transportation to prevent pollution - adopting a closed design to prevent dust leakage, ensuring a clean production environment, and meeting the hygiene standards of the food and pharmaceutical industries.

④ Save space, optimize layout - The equipment has a compact structure and can complete complex conveying tasks in limited space, making it suitable for automated production lines.

⑤ Material options are available to meet the needs of various industries - the equipment can be made of stainless steel, carbon steel, or food grade PP plastic to meet the usage requirements of different industries.

⑥ Easy maintenance and low operating costs - the equipment runs stably, has low maintenance costs, and is easy to clean, extending its service life.

4、 Application fields of Z-type bucket elevator

① Food industry

Candy, chocolate, nuts, potato chips, rice, grains and other food items are transported to ensure no contamination or damage.

② Pharmaceutical industry

Transport drug particles, capsules, tablets, etc. to avoid cross contamination and comply with GMP standards.

③ Chemical industry

Suitable for plastic pellets, fertilizers, chemical powders, etc., ensuring transportation stability and sealing.

④ Agricultural industry

Transport seeds, feed, grains, etc. to avoid material damage and improve storage quality.

⑤ Hardware and Electronics Industry

Suitable for transporting small hardware and electronic components, ensuring safety and no damage.

Good maintenance can not only reduce failure rates, but also improve production efficiency and reduce operating costs.

If you are looking for a lifting equipment suitable for fine material conveying, the Z-type bucket elevator will be your ideal choice! We provide professional customized services and can tailor the best solution according to your production needs!
