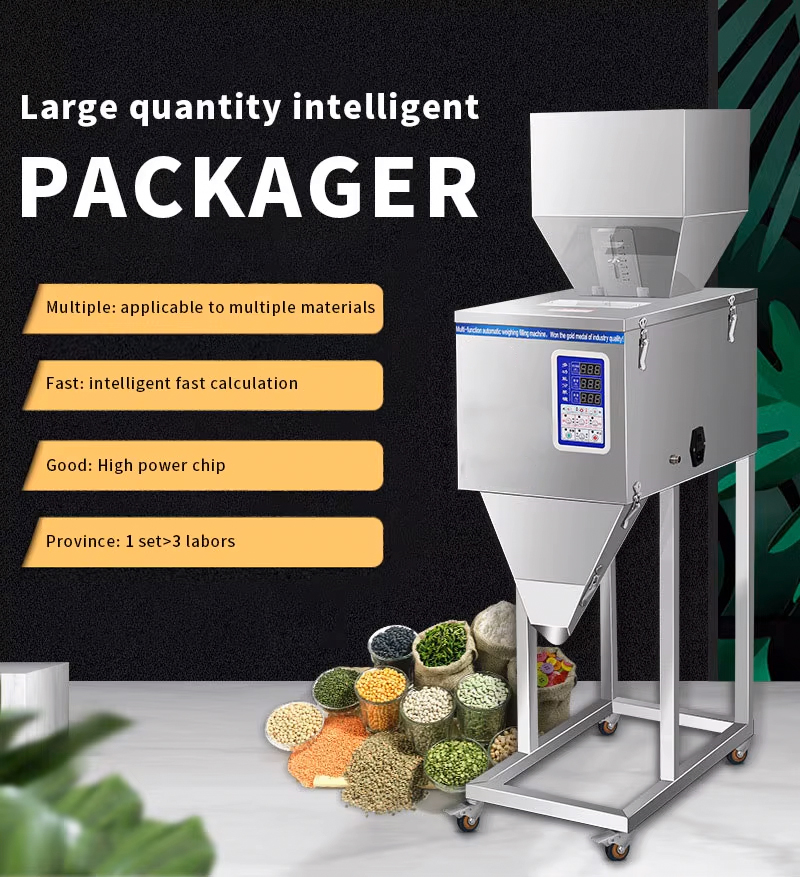

BFZZ serial semi-automatic powder & particle filling measure the design and manufacture which is filled with the packer and adopt the advanced science and hi-tech in our glory.
Its main characteristic: Of fine qualities, with high efficiency, the appearance is esthetic. Adopt the advanced microelectronics and control, pack the pace and can all be set up automatically and intelligently according to different thickness articles.
Finish packing the powder & particle. Suitable for packing less than of various 100 mesh and having powder as tea, coffee, rice, beans, stained with sticks, particle supplies.

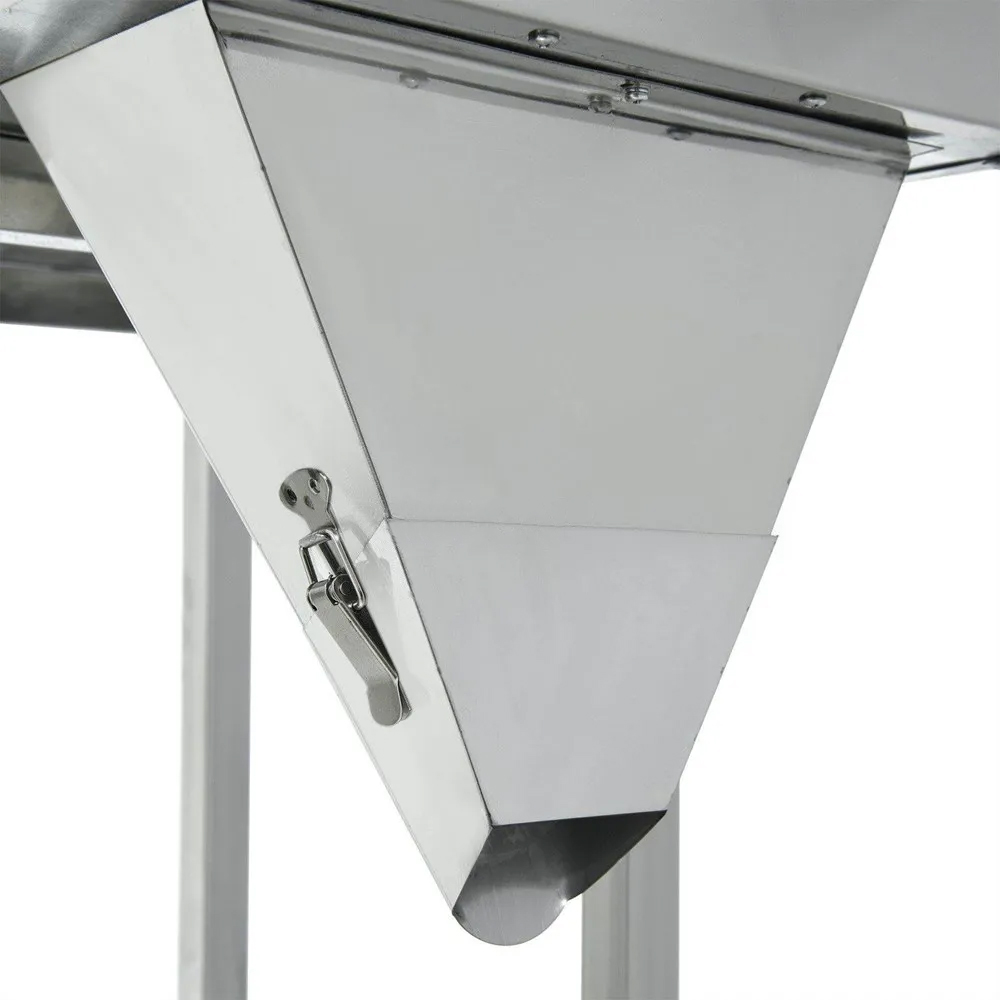

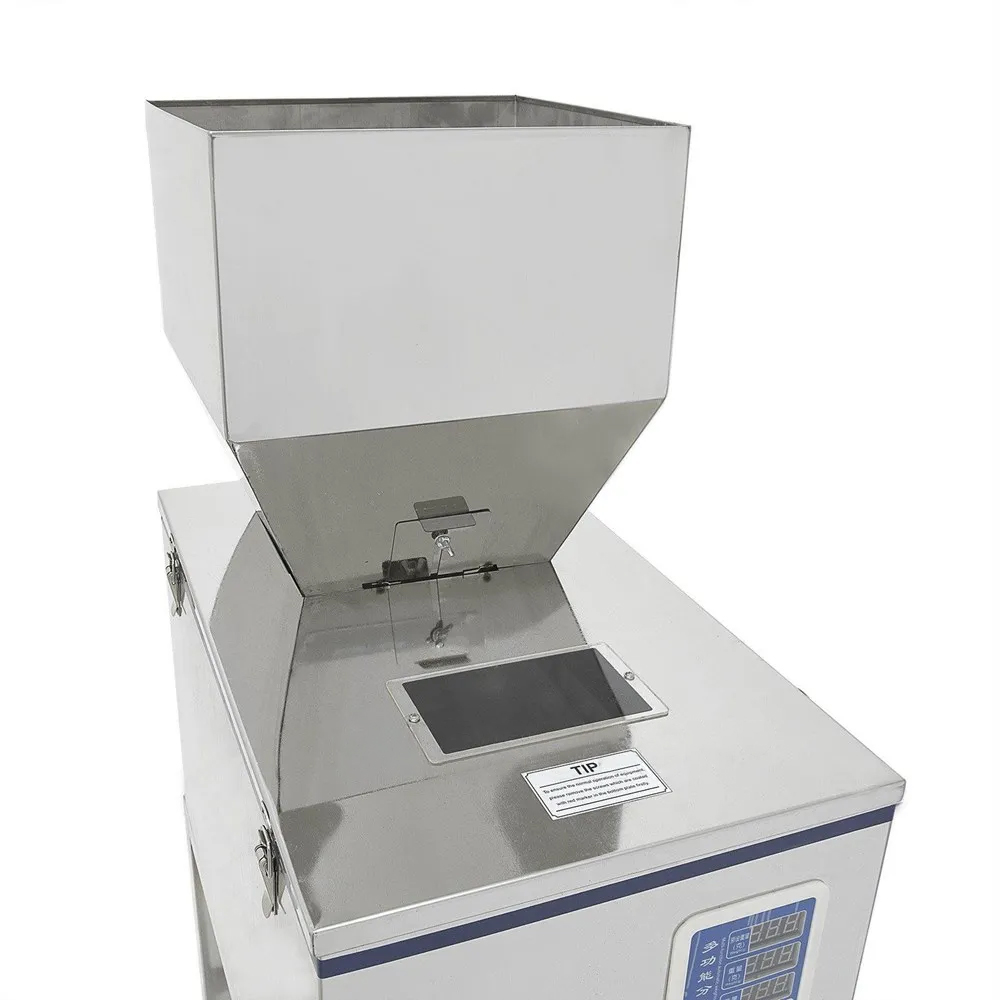

The equipment mainly consists of a storage hopper, a screw feeding system, a servo motor control system, a human-machine interface (touch screen), a filling port, and a weighing system.
The operator places the container to be packaged at the filling port;
The system automatically starts the screw rotation (driven by servo motor) to accurately measure the required materials;
Screw sends powder or particles into the packaging container;
According to the weighing feedback, the system can make slight corrections to ensure filling accuracy;
After filling, manually remove the container or use a turntable for semi-automatic circulation operation.
| Model | BFZZ-1 | BFZZ-3 | BFZZ-5 |
|---|---|---|---|
| Filling weight | 10-999G | 20-3000G | 20-5000G |
| Scope | Granule/Powder | Granule/Powder | Granule/Powder |
| Speed | 10-30 bags/Min | 10-30 bags/Min | 10-30 bags/Min |
| Precision | ±2g(basis on different material) | ±2g((basis on different material) | ±2g((basis on different material) |
| Bottle height | 3-500(MM) | 3-500(MM) | 3-500(MM) |
| Bottle dia. | 40-500(MM) | 40-500(MM) | 40-500(MM) |
| Voltage | 220V 50HZ/110V 60HZ | 220V 50HZ/110V 60HZ | 220V 50HZ/110V 60HZ |
| Power | 200W | 200W | 200W |
| Dimension(L x W x H) | 53x38x93CM | 66x43x108CM | 66x43x120CM |
| Net weight(kg) | 27KG | 45KG | 40KG |
High precision: Servo motor controls screw rotation, with high filling accuracy, up to ± 1%;
Easy to operate: touch screen control system, intuitive parameter adjustment, convenient operation;
Strong universality: good adaptability, suitable for various powders and particles with different flowability;

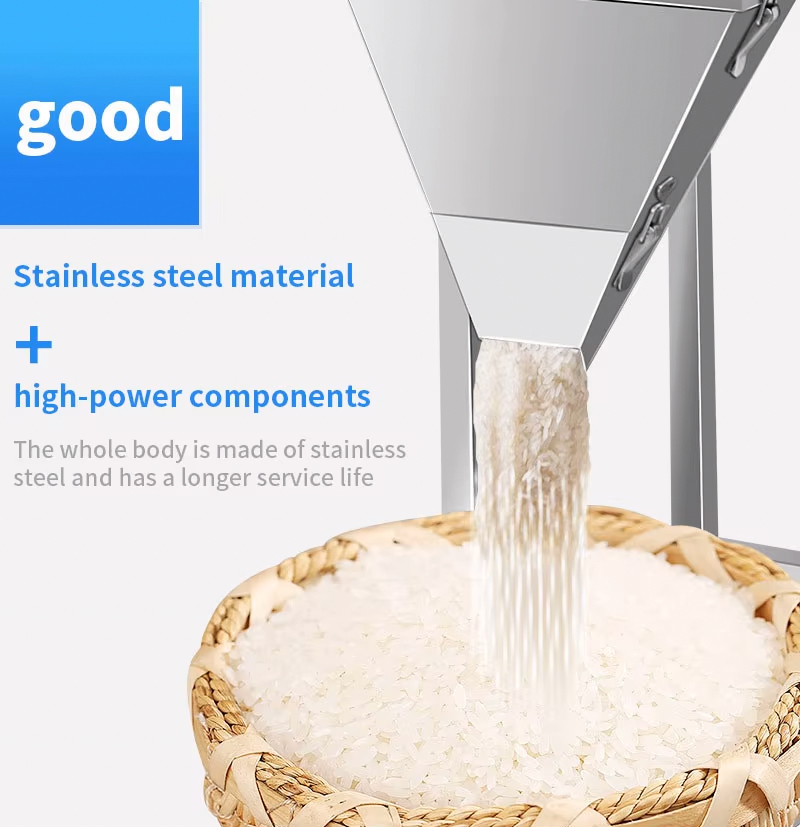

Reasonable structure: stainless steel structure, easy to clean, in compliance with GMP requirements;
Multiple modes: supports weight based, volume based, or time controlled filling;
Customizable: Design can be customized according to different bottle types, bag types, or material characteristics.
Powder with good fluidity: such as milk powder, flour, protein powder, coffee powder, etc;
Powder with poor fluidity: such as powder, essence, chemical additives, etc;
Small granular materials: such as seasoning granules, feed granules, granular chemical raw materials, etc.
Pharmaceutical industry: packaging of pharmaceutical powders and granules;
Food industry: flour, milk powder, seasonings, coffee, tea powder, etc;
Chemical industry: additives, desiccants, pesticide powders, pigments, etc;
Health product industry: protein powder, nutritional supplements;
Daily chemical industry: laundry detergent, cleaning powder, etc.
If you are looking for the Particle Filling Machine BFZZ, please feel free to contact us anytime!
