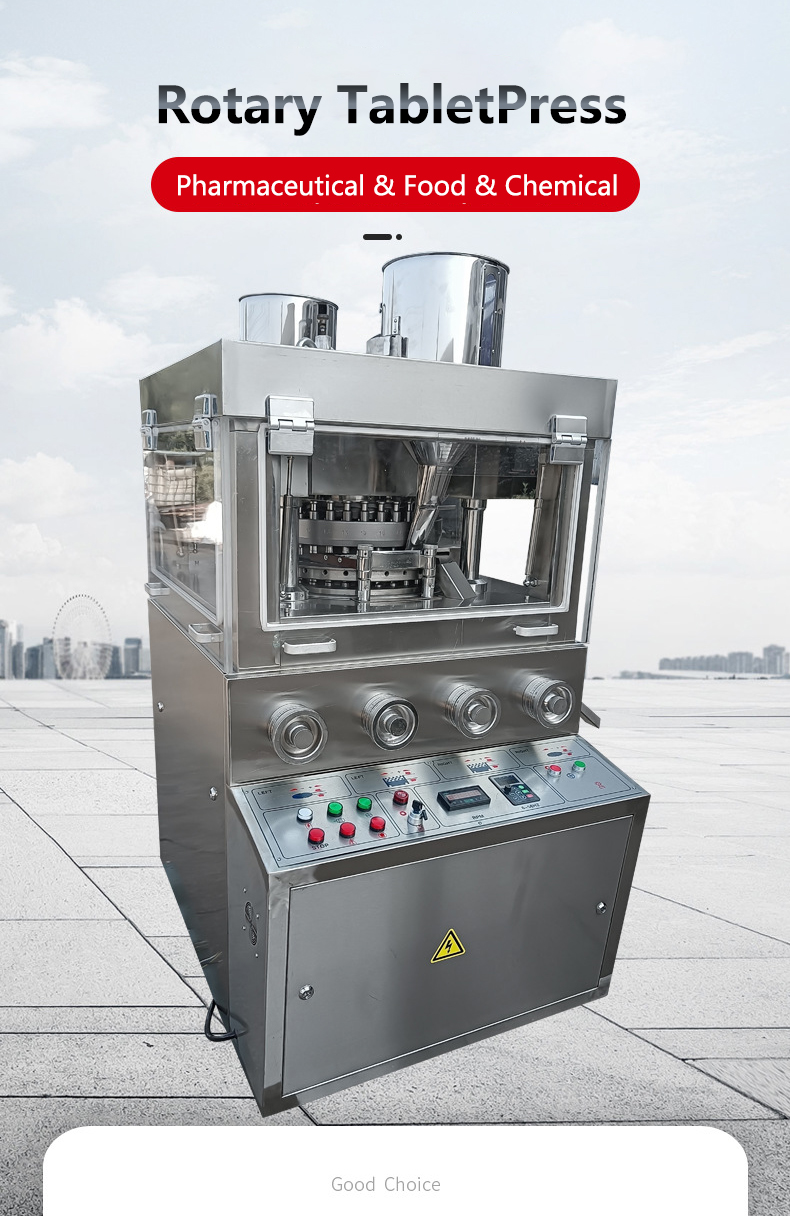

The ZP series rotary tablet press is a continuous automatic tablet press equipment used to press various granular or powdered materials into circular, irregular, or tablets with text patterns. It is widely used in industries such as pharmaceuticals, food, and chemicals. The whole machine is made of stainless steel, in compliance with GMP standards, with stable performance, easy operation, fast pressing speed, suitable for small and medium-sized production and large-scale use.
The turntable continues to rotate, completing a continuous cycle of feeding, pressing, and discharging.
| Model | ZP-29 | ZP-29B |
|---|---|---|
| Number of dies | 29 | 29 |
| Max Pressure(KN) | 80 | 80 |
| Pre-compression Force | ---- ---- | 10 |
| Max Diameter of Tablet(mm) | 25 | 23 |
| Max Fill Depth(mm) | 15 | 15 |
| Max Thickness of Tablet(mm) | 6 | 6 |
| Max Production Capacity Per Hour | 135000 | 110000 |
| Turret Speed(r/min) | 14-36 | 5-30 |
| Double Layered Tablet | On Request | On Request |
| Motor(kW) | 5.5 | 5.5 |
| Overall dimensions(mm) | 1230*950*1670 | 1230*950*1670 |
| Weight (kg) | 1700 | 2300 |
It can continuously press various specifications of circular or irregular tablets, suitable for large-scale production.
The whole machine is made of stainless steel, which meets GMP standards and is dustproof and corrosion-resistant.
Transparent windows facilitate observation of the operation process, and are easy to clean and maintain.

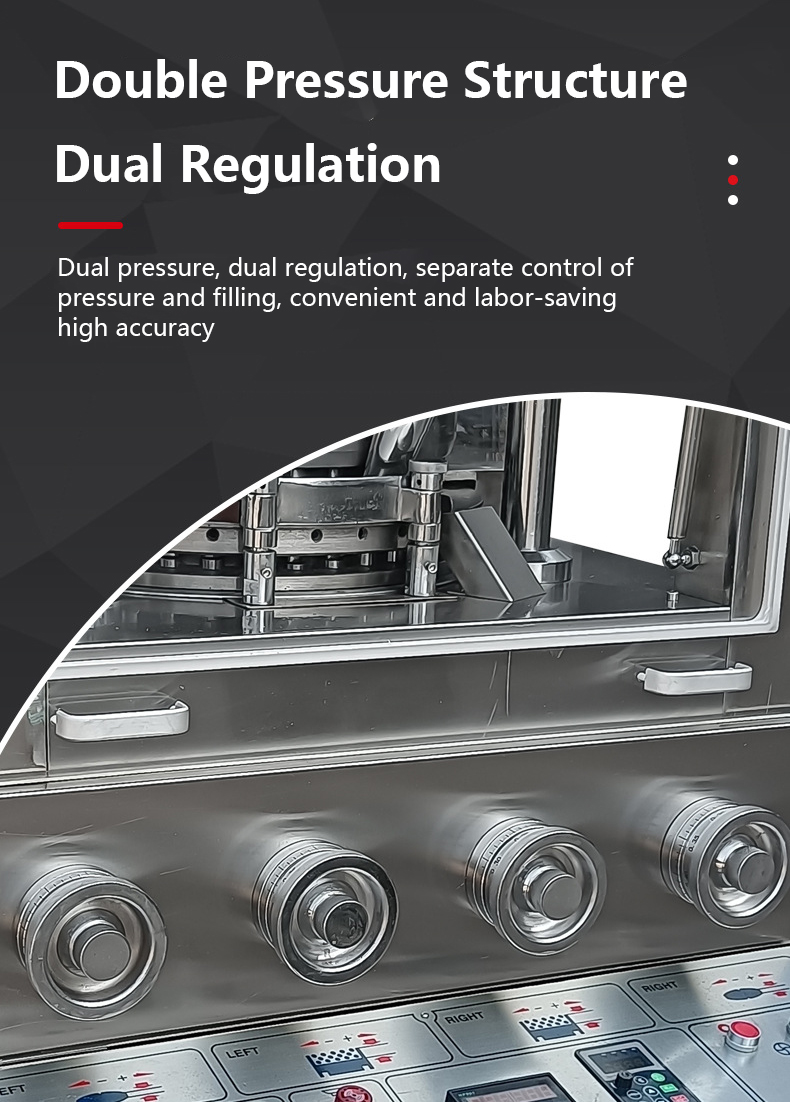

Pressure, tablet weight, and thickness can be adjusted separately to ensure consistency of the finished tablets.
Equipped with overload protection device to prevent machine damage.
Prolongs equipment life and reduces maintenance frequency.
Single rotation can press multiple pieces, improving production efficiency.
Pharmaceutical industry: tablets, vitamin tablets, herbal extract tablets, etc.
Food industry: milk tablets, candy tablets, mint tablets, enzyme tablets, etc.
Chemical industry: catalyst tablets, deodorizing tablets, aromatic tablets, etc.
Electronic/metallurgical industry: battery material pressing, alloy powder pressing, etc.
