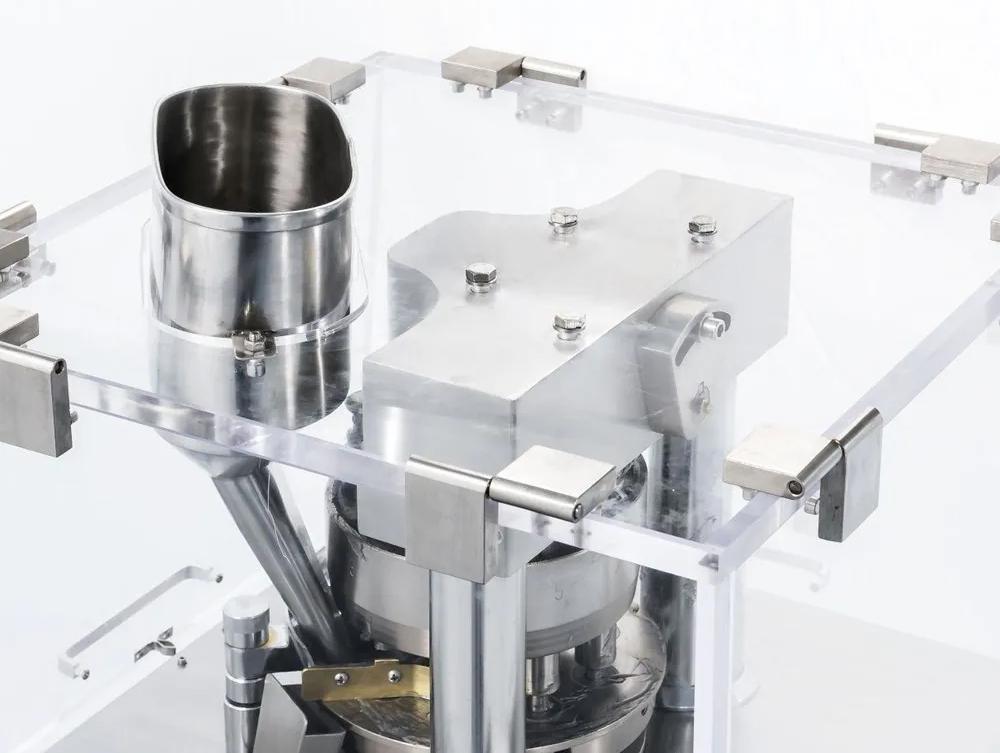

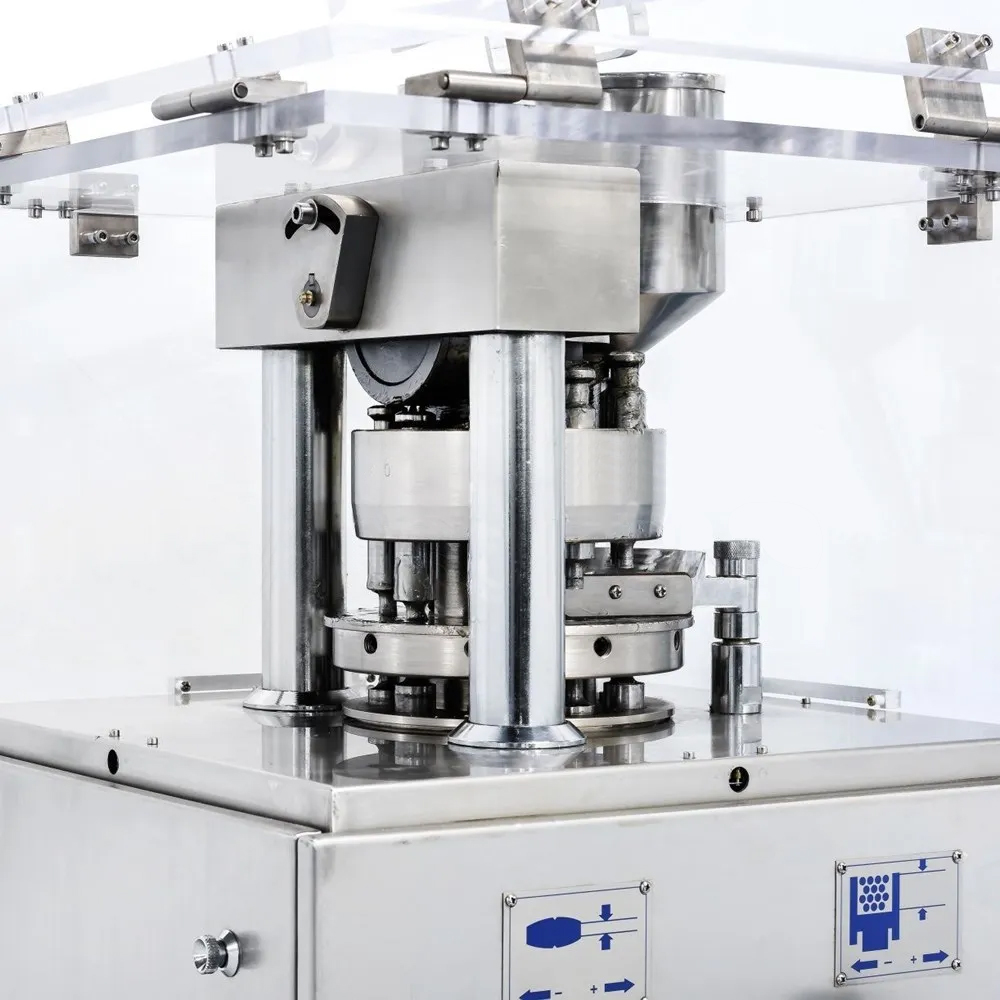

The ZP-9B rotary tablet press is driven by an electric motor to rotate the turntable, while the raw materials are evenly fed into the mold by the feeder. The upper and lower punch rods perform downward and upward pressing actions respectively under the guidance of the guide rail, compressing the powder into pieces. After the compression is completed, the tablets are automatically discharged from the tablet outlet, and the entire process is continuous and efficient.
Basic process:
1. Feeding → 2 Filling → 3 Main compression molding → 4 Release → 5 Automatic rotation
| Model | ZP-5B | ZP-7B | ZP-9B |
|---|---|---|---|
| Number of turret dies (pairs) | 5 | 7 | 9 |
| Maximum tablet output (tablets/hour) | 10,000 | 12,000 | 14,000 |
| Maximum working pressure (kN) | 60 | ||
| Maximum tablet diameter (mm) | 20 | ||
| Maximum tablet thickness (mm) | 6 | ||
| Maximum filling depth (mm) | 15 | ||
| Turret working diameter (mm) | 200 | ||
| Turret speed (rpm) | 0-30 | ||
| Middle die diameter (mm) | 26 | ||
| Middle die height (mm) | 22 | ||
| Upper and lower punch diameter (mm) | 22 | ||
| Upper and lower punch length (mm) | 115 | ||
| Overall dimensions (mm) | 480*635*1100 | ||
| Machine weight (kg) | 330 | ||
| Motor power (kW) | 2.2 | ||
| Voltage (V) | 220 | ||

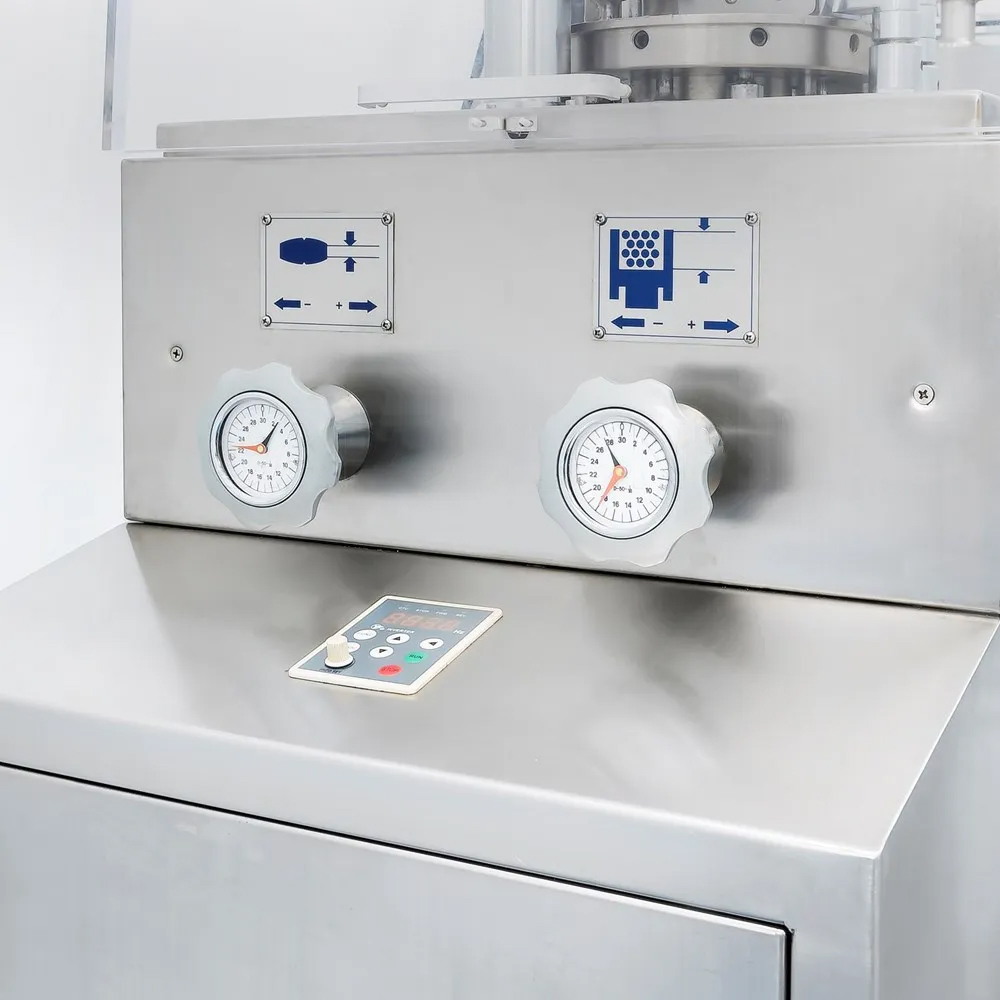

Flexible adjustment of upper and lower molds, quick and convenient mold replacement
Pharmaceutical industry: such as traditional Chinese medicine tablets, Western medicine tablets, painkillers, antibiotics tablets, etc
Food and health products industry: such as vitamin tablets, calcium tablets, spirulina tablets, chewing gum tablets, etc
Chemical industry: such as disinfectant tablets, laundry gel beads, cleaning tablets, catalyst tablets, etc
Pesticide and veterinary medicine industry: such as insecticidal tablets, weed control tablets, animal health product tablets, etc
