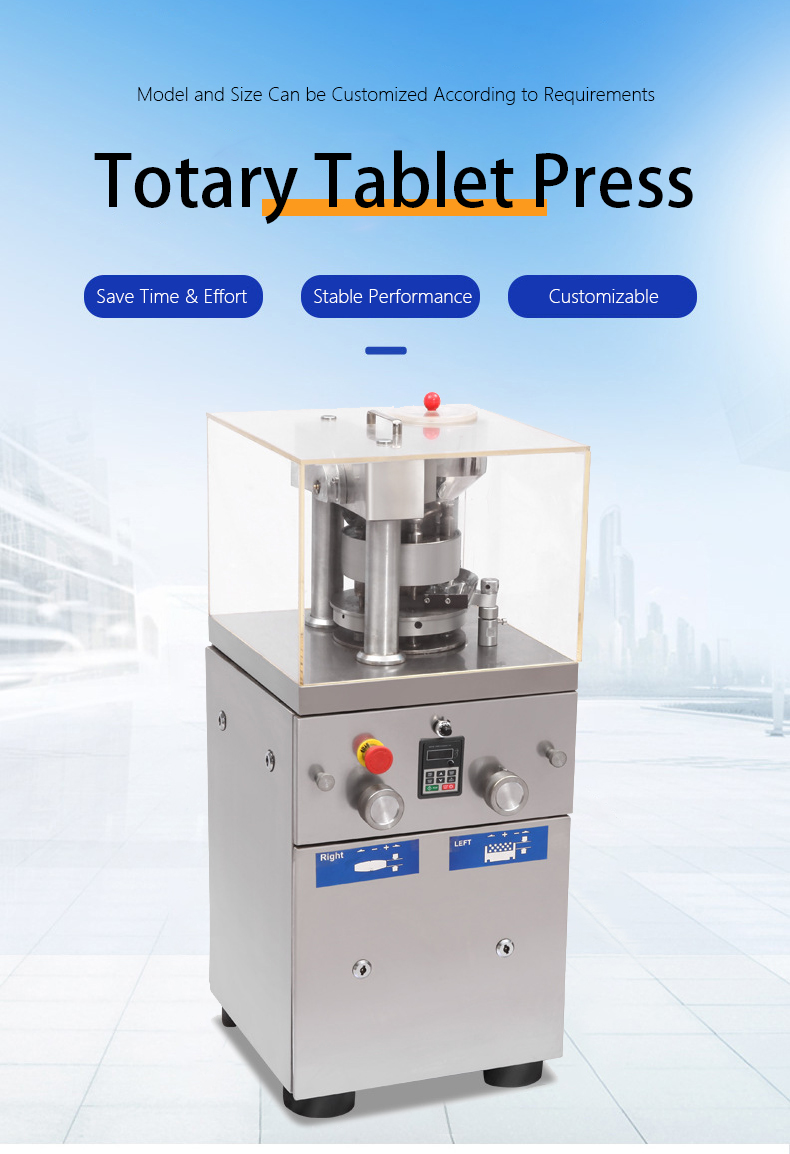

The ZP-9 rotary tablet press is an efficient tablet press equipment suitable for industries such as pharmaceuticals, food, chemicals, and health products. It is designed to press granular or powdered raw materials into various specifications of circular and irregular tablets. This machine is equipped with 9 punch heads, with a compact structure, easy operation, and high output, suitable for small-scale to medium-sized batch production.
The turntable continuously rotates, forming a continuous production process with high efficiency.
| Punch quantity (set) | 9 | 7 | 5 |
|---|---|---|---|
| Max. tablet pressure (kN) | 40 | 40 | 40 |
| Max. tablet diameter (mm) | 12 | 12 | 12 |
| Max. tablet thickness (mm) | 6 | 6 | 6 |
| Max. filling depth (mm) | 15 | 15 | 15 |
| Max. production capacity (pc/h) | 16,200 | 12,600 | 9,000 |
| Turntable working diameter (mm) | 200 | 200 | 200 |
| Turntable speed (r/min) | 0~40 | 0~40 | 0~40 |
| Diameter of middle punch (mm) | 26 | 26 | 26 |
| Height of middle punch (mm) | 22 | 22 | 22 |
| Diameter of upper and lower punch (mm) | 22 | 22 | 22 |
| Length of upper and lower punch (mm) | 115 | 115 | 115 |
| Motor power (kW) | 1.5 | 1.5 | 1.5 |
| Voltage (V) | 220 | 220 | 220 |
| Overall dimension (mm) | 475*465*1030 | 475*465*1030 | 475*465*1030 |
| Machine weight (kg) | 230 | 230 | 230 |

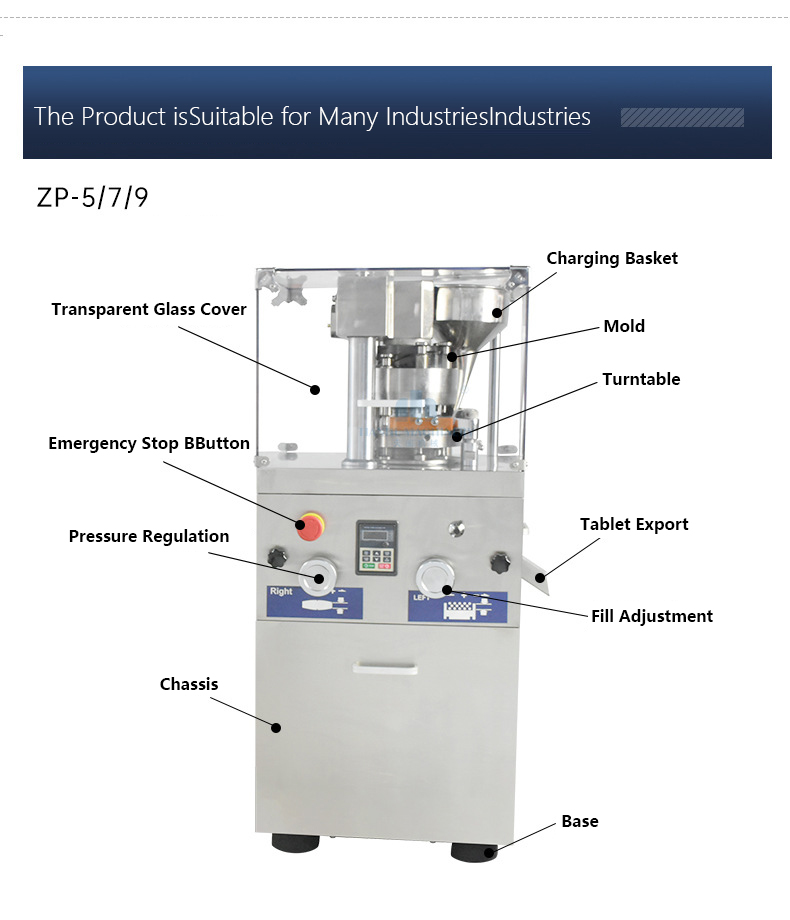

9-punch rotating structure, achieving continuous high-speed tablet pressing
Support adjusting tablet weight, thickness, and pressure to adapt to multiple formulations
Stainless steel casing, easy to clean, in compliance with GMP requirements
Transparent protective cover design ensures operational safety
Optional irregular molds to meet diverse production needs
Suitable for pharmaceutical tablets, chewable tablets, calcium tablets, cooling tablets, etc
Pharmaceutical industry
-Mainly used in the production of Chinese and Western pills, vitamins, calcium tablets, painkillers, etc.
-Meet the precise dosage and efficient mass production needs of prescription tablets.
-Can compress composite tablets containing multiple active ingredients.
Food and Health Products Industry
-Suitable for pressing chewable tablets, nutritional supplements (such as spirulina tablets, fish oil tablets), candy tablets, etc.
-We can customize products with different shapes and tastes according to customer needs.
-Realize efficient tablet pressing to meet the supply demand of the large-scale healthy food market.
Chemical industry
-Can be used to suppress non pharmaceutical chemical products such as catalysts, disinfectant tablets, cleaning tablets, etc.
-Specially suitable for products that require compression density and stability.
Pesticide and veterinary medicine industry
-Suitable for pesticide tablets (such as rodenticides, insecticides) and animal health tablets.
-Ensure the stability and uniformity of the product during transportation and use.
Other industries
-Electronics industry: Pressing certain functional ceramic powders or sheet-like electrodes
-Daily chemical industry: household cleaning products such as dehumidifiers, toilet cleaners, laundry detergent beads, etc.
