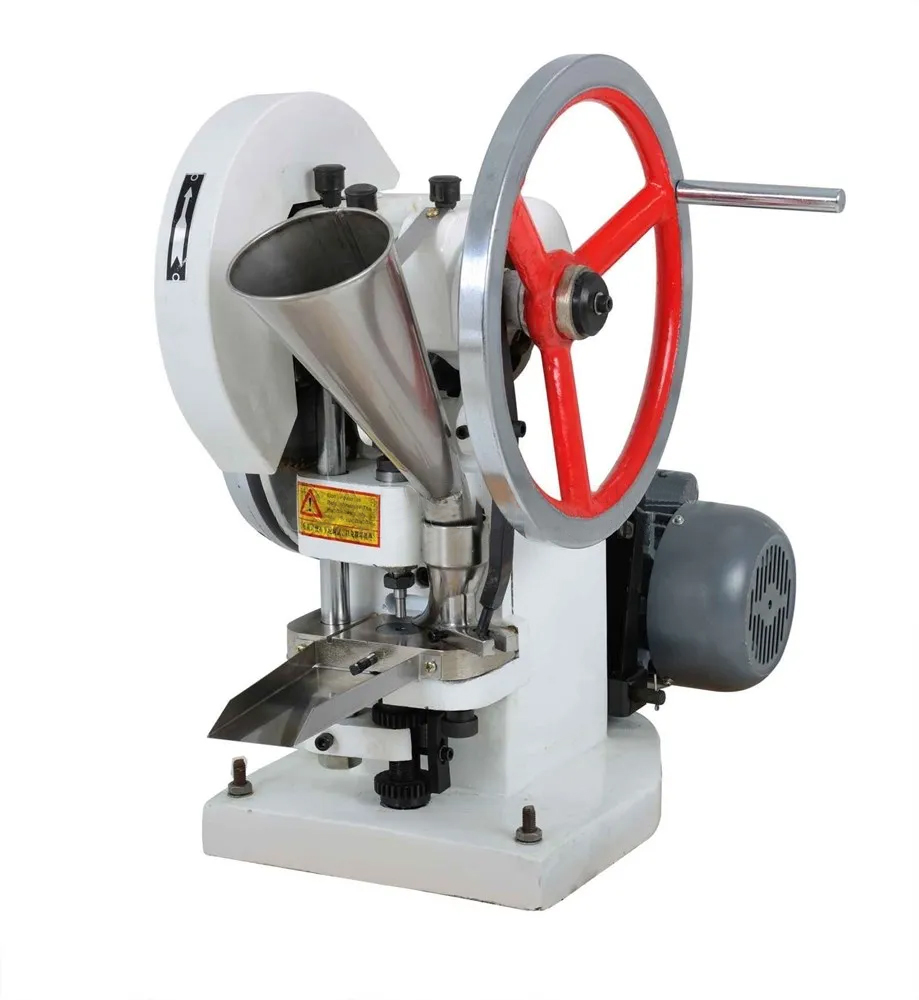

The TDP Series Single Punch Tablet Press Machine is a compact and versatile device designed to compress powder or granular materials into tablets of various shapes and sizes. It is widely used in the pharmaceutical, food, health supplement, chemical, and electronics industries. Ideal for R&D, laboratory testing, and small-batch production.
This machine operates on a single punch mechanism, powered either electrically or manually. It offers adjustable tablet thickness, compression pressure, and output speed. The tooling can be easily replaced to produce round, customized, or engraved tablets, ensuring adaptability to different production needs.

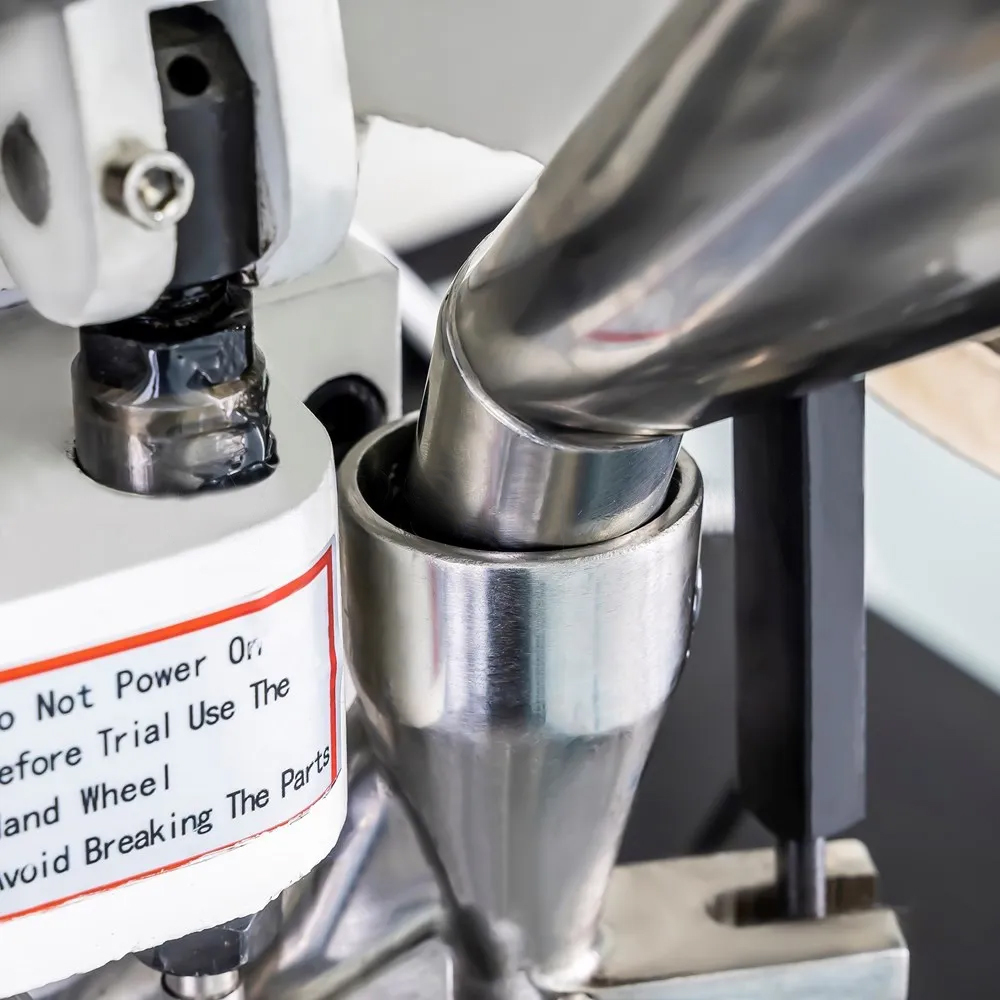

Powder or granular materials enter the feeder through a funnel, and the feeder evenly distributes the materials into the middle mold holes under the action of gravity or slight stirring.
Go back to the initial position and enter the next feeding stage.
| Model | TDP-1.5 | TDP-5 | TDP-6 |
|---|---|---|---|
| Max. pressure (KN) | 15 | 50 | 60 |
| Max. dia. of tablet(mm) | 12 | 20 | 25 |
| Max. depth of filling(mm) | 12 | 15 | 18 |
| Capacity (tablets/h) | 5000 | 4500 | 3000 |
| Rotational speed (r/min) | 1400 | 1400 | 1400 |
| Power(w) | 110V 60Hz / 220V 50Hz 0.4kw | 110V 60Hz / 220V 50Hz 0.75kw | 110V 60Hz / 220V 50Hz 1.1kw |
| Weight | 78kg | 120kg | 165kg |
| Dimensions | 570X380X630mm | 650x440x650mm | 750x380x695mm |
Compact structure and small size: convenient for placement on experimental desks or in small spaces.
Electric+manual dual mode: Handwheel operation can still be used when power is off, suitable for various scenarios.

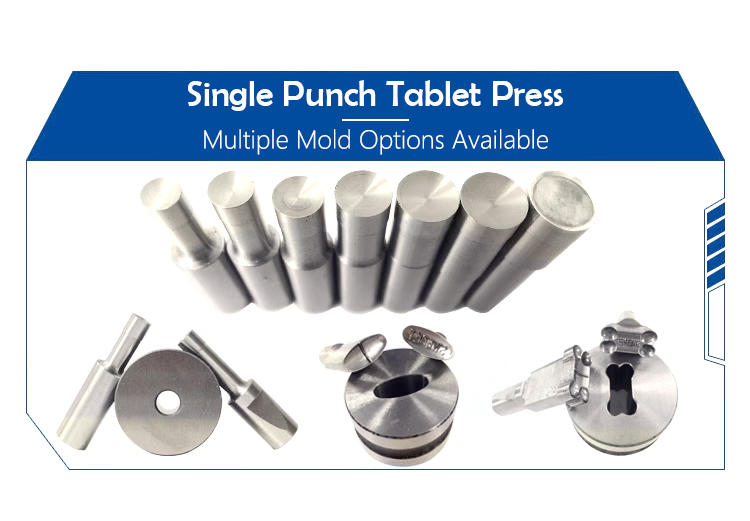

Mold replacement is simple: quickly switch between different sizes and shapes of stamping dies.
High precision compression system: Ensure that each tablet has consistent weight and uniform thickness.
Low noise, smooth operation: suitable for use in quiet environments such as hospitals and research institutions.
Using 304 stainless steel contact surface: meets GMP hygiene standards, easy to clean, and corrosion-resistant.
Pharmaceutical industry: production of traditional Chinese medicine and western medicine tablets
Health product industry: such as vitamin tablets, nutritional tablets, and lozenges
Food industry: such as candy tablets, dairy tablets, chewable tablets
Chemical industry: such as catalysts, cleaning agent tablets
Experimental/research and development purposes: pharmaceutical laboratory, scientific research institution, university laboratory
