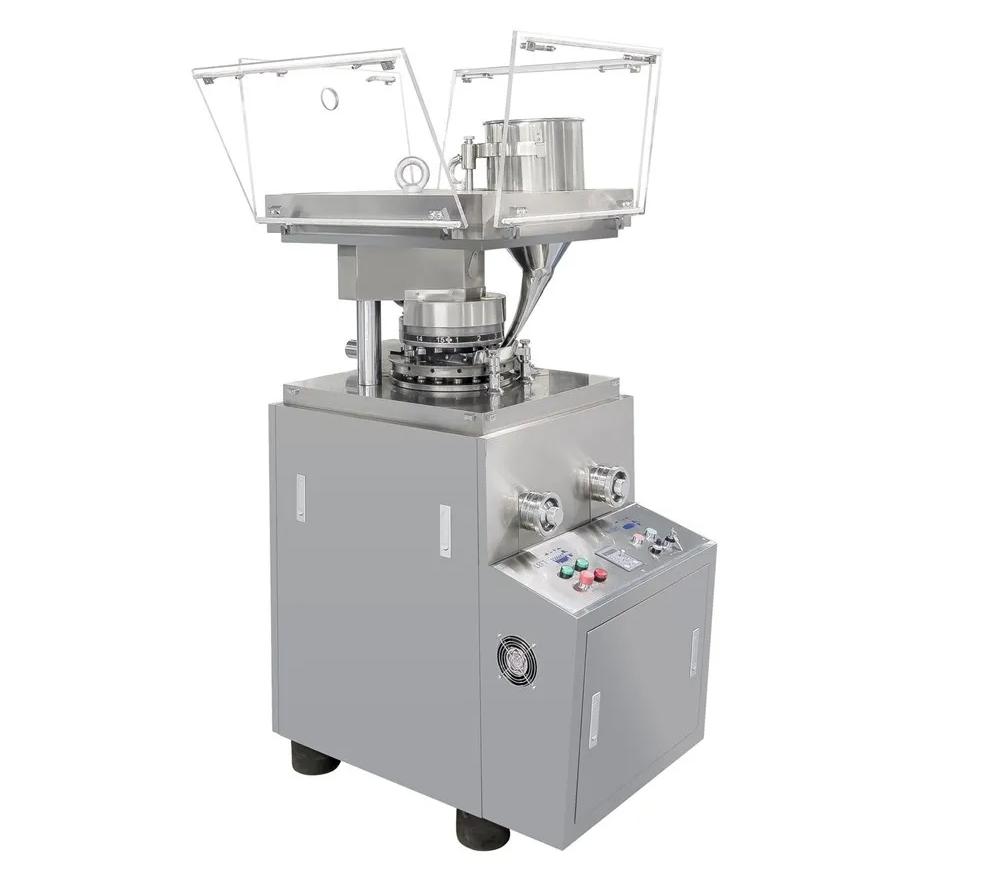

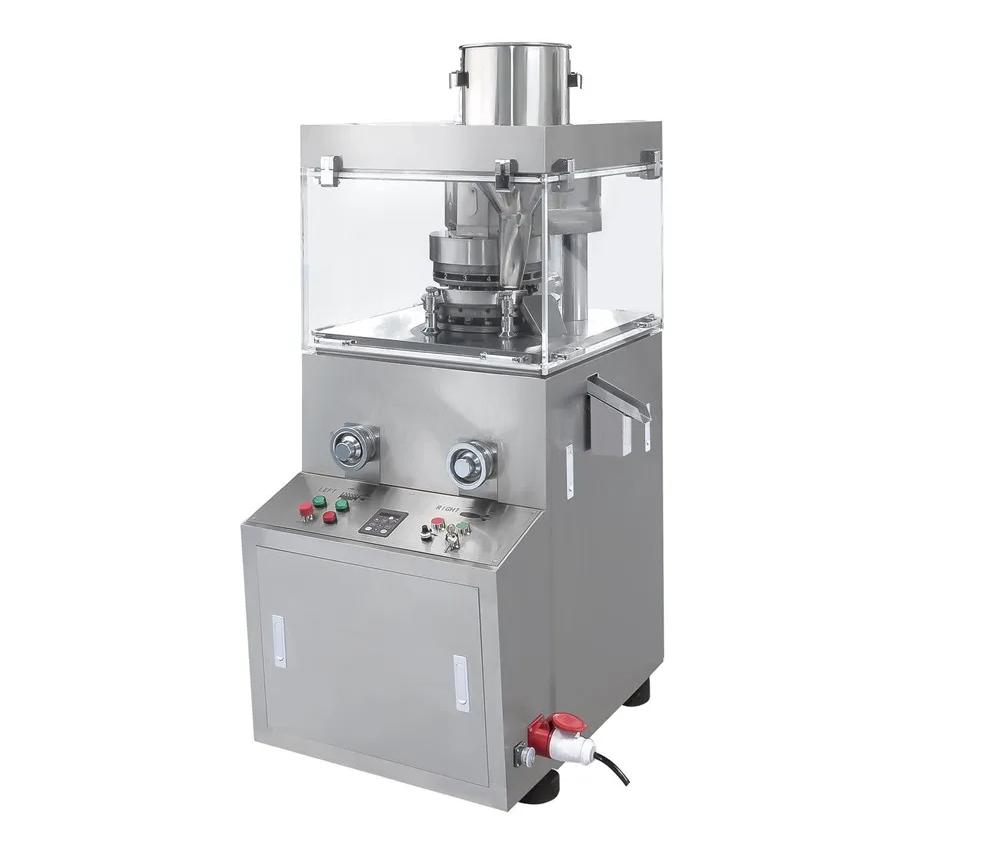

The ZP series rotary tablet press is a continuous automatic tablet press equipment used to press various granular or powdered materials into circular, irregular, or tablets with text patterns. It is widely used in industries such as pharmaceuticals, food, and chemicals. The whole machine is made of stainless steel, in compliance with GMP standards, with stable performance, easy operation, fast pressing speed, suitable for small and medium-sized production and large-scale use.

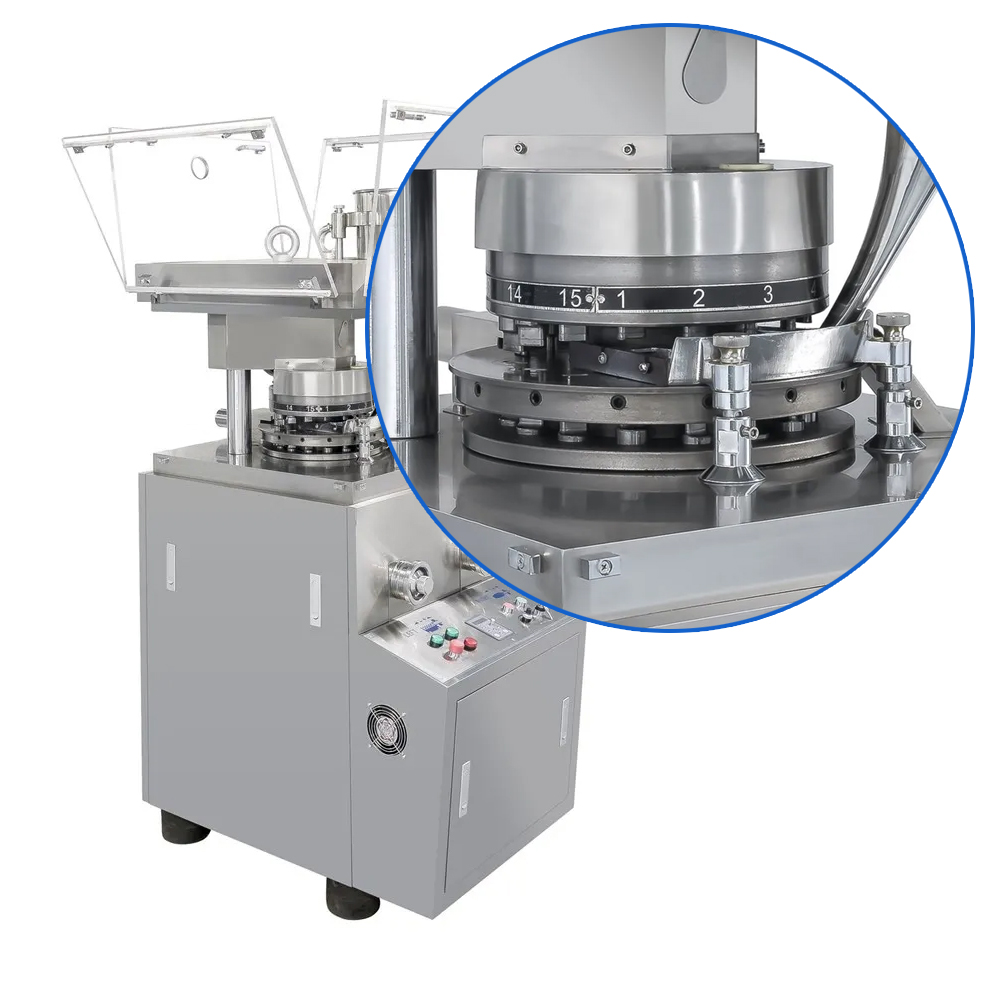

Rotary tablet press is a continuous pressing equipment that compresses powder or granular materials into tablets through a mold system. The core components include: turntable, upper punch, lower punch, middle mold, feeder, pressure wheel system, electronic control system, etc. The entire working process involves completing multiple steps such as filling, pressing, and dispensing while the turntable rotates.
The middle mold rotates to enter the next filling position.
| Model | ZP-15D | ZP-17D | ZP-19D |
|---|---|---|---|
| Punch quantity (set) | 15 | 17 | 19 |
| Max. tablet pressure (kN) | 60 | 60 | 60 |
| Max. tablet diameter (mm) | 22 | 20 | 13 |
| Max. tablet thickness (mm) | 6 | 6 | 6 |
| Max. filling depth (mm) | 15 | 15 | 15 |
| Max. production capacity (pc/h) | 35,000 | 40000 | 42000 |
| Depth of middle punch (mm) | 22 | 22 | 22 |
| Diameter of middle punch (mm) | 34 | 30 | 26 |
| Diameter of upper and lower punch (mm) | 26 | 22 | 22 |
| Length of upper punch (mm) | 115 | 115 | 115 |
| Length of lower punch (mm) | 115 | 115 | 115 |
| Machine’s coverage area (mm) | 615*890 | 615*890 | 615*890 |
| Machine height (mm) | 1,415 | 1,415 | 1,415 |
| Machine weight (kg) | 1,000 | 1,000 | 1,000 |
Double pressure structure:The upper and lower pressure wheels press simultaneously, ensuring stable pressure and more uniform compression;
High speed rotating wafer: high output, fast efficiency, suitable for large-scale continuous production;

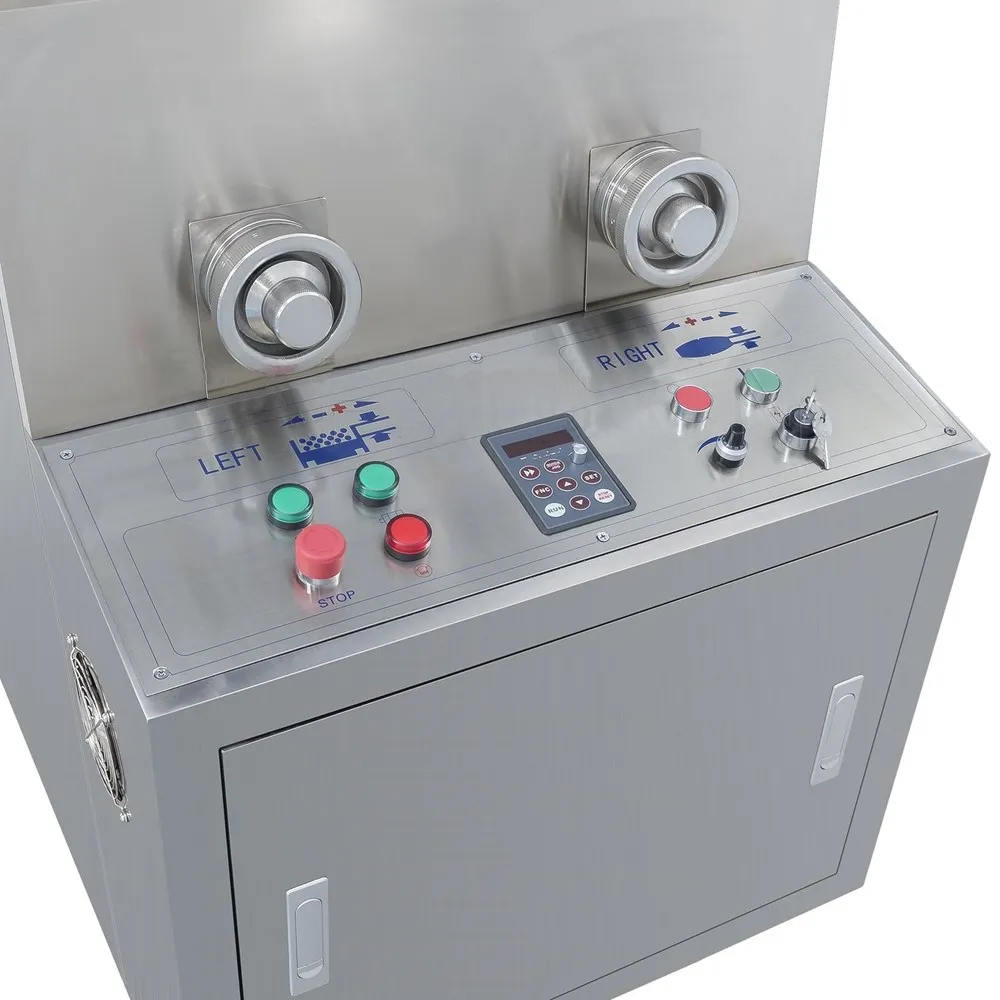

Human friendly operation interface: simple button and knob design, easy to operate;
Strong compression ability: The maximum pressure can reach 80kN, suitable for tablets with high hardness requirements;
Transparent window design: Visualization of tablet pressing process, easy to observe and debug;
Overload protection system: automatic shutdown in case of abnormal conditions, protecting molds and machines;
Precision mold compatibility:compatible with multiple stamping die standards (such as EU, TP, etc.);
Pharmaceutical industry: screening and impurity removal of pharmaceutical powders, granules, capsule raw materials, etc;
Food industry: graded screening of flour, milk powder, sugar powder, seasonings, etc;
Chemical industry: coatings, resins, dyes, chemical powder screening;
Metallurgical industry: metal powder, mineral powder, welding materials, etc;
Building materials industry: quartz sand, ceramic powder, glass powder screening;
Environmental protection industry: sewage filtration, solid-liquid separation treatment of waste liquid.
