The HD-100 capsule/tablet counter is an efficient and accurate automated drug counting device designed for pharmaceutical companies, hospital pharmacies, and pharmaceutical distribution centers to quickly and accurately count the number of capsules and tablets.

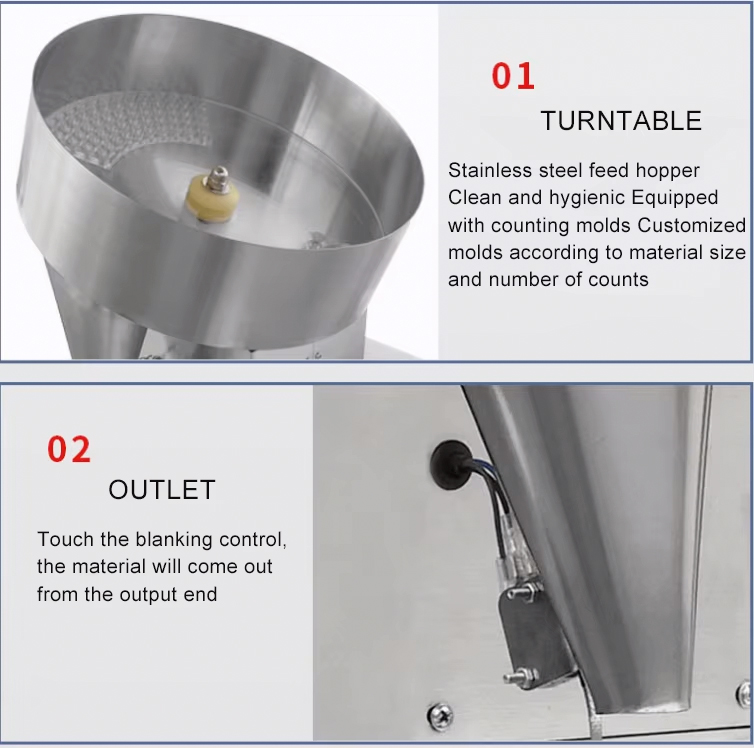

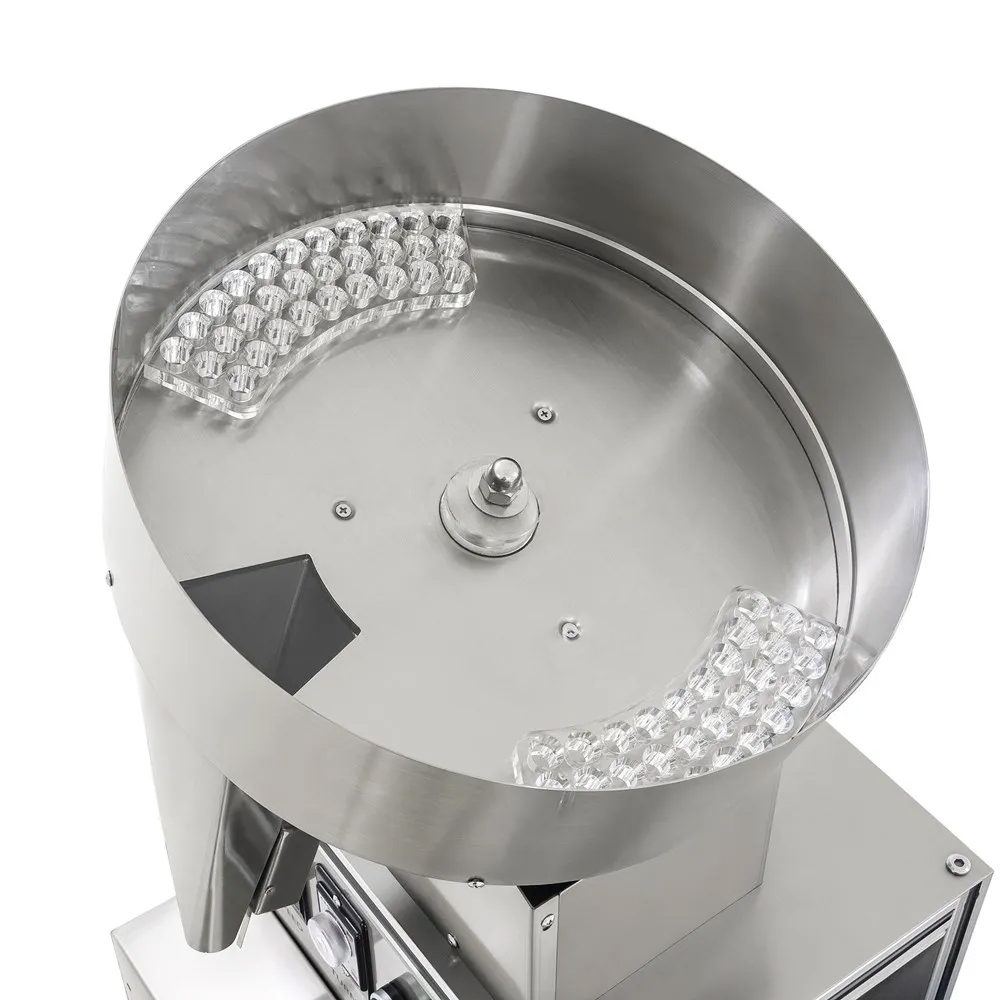

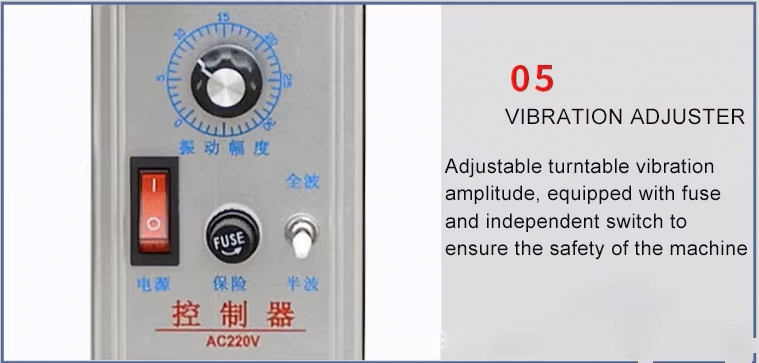

The capsules/tablets are evenly arranged and transported to the counting channel through adjustable vibration frequency.
using high-precision photoelectric sensors for non-contact counting of each drug passing through.
Built in intelligent control system monitors the counting process in real-time to ensure accuracy.
Automatically package drugs into designated containers after counting is completed.
| Application | Pill, Capsules, tablets, soft capsules and items of regular shape |
|---|---|
| Dia. of counting slide | 400mm |
| Max counting range | 5-100 Tablets/bottle(the number of holes in the counting plate is determined by the size of the item) For size 00 capsules, 100 pcs per time, for size 0 capsules, 120 pcs per time, and size 1 capsules, 150 pcs per time. For tablets of 6 mm, 150 pcs per time, and for tablets of 8 mm, 100 pcs per time. And the thickness of the tablets shall be 3-20 mm. |
| Capacity | 12-26 vials (bags)/min |
| Capsule/Tablet size | As requested |
| Power | 150W |
| Voltage | 110V 60Hz / 220V 50Hz (single-phase ) |
| Weight | 48kg |
| Dimensions | 600x500x700mm |
using electronic sensors and vibration distribution technology to ensure accurate quantity of each bottle of product and reduce manual counting errors.
Suitable for high production demand, able to quickly complete large-scale capsule or tablet filling, significantly improving production efficiency.
Not only suitable for capsules and tablets, but also for other small particle products, providing a wider range of application scenarios.

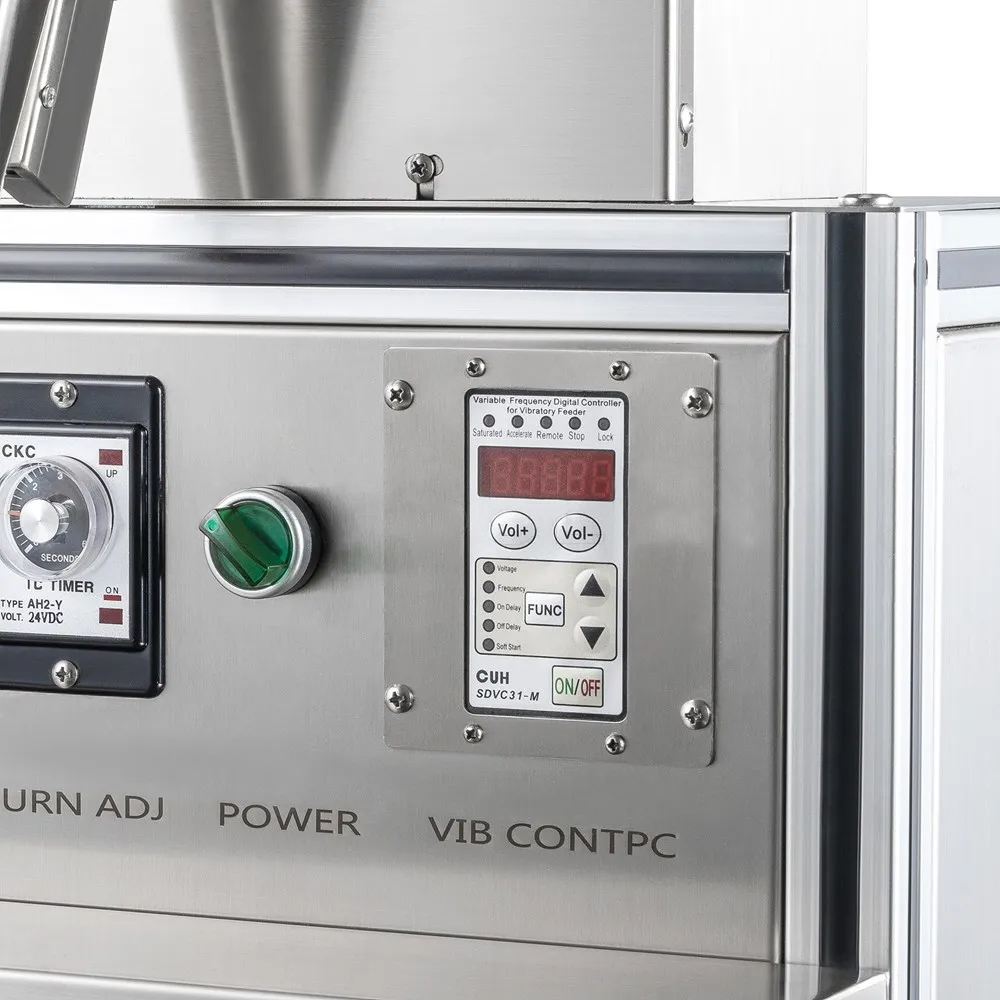

Operated through touch screen or buttons, easy to operate, supports setting different filling quantities and speeds.
The machine is made of stainless steel material, which is easy to clean and disinfect and meets GMP certification requirements.
This model has a compact design structure, stable operation, and is suitable for long-term continuous work.
Pharmaceutical industry: quantitative bottling of various tablets, capsules, and pills.
Health product industry: packaging counting for vitamins, soft capsules, etc.
Food industry: bottling of small grain foods, candies, etc.
Chemical industry: Quantitative counting and bottling of small particle products.
