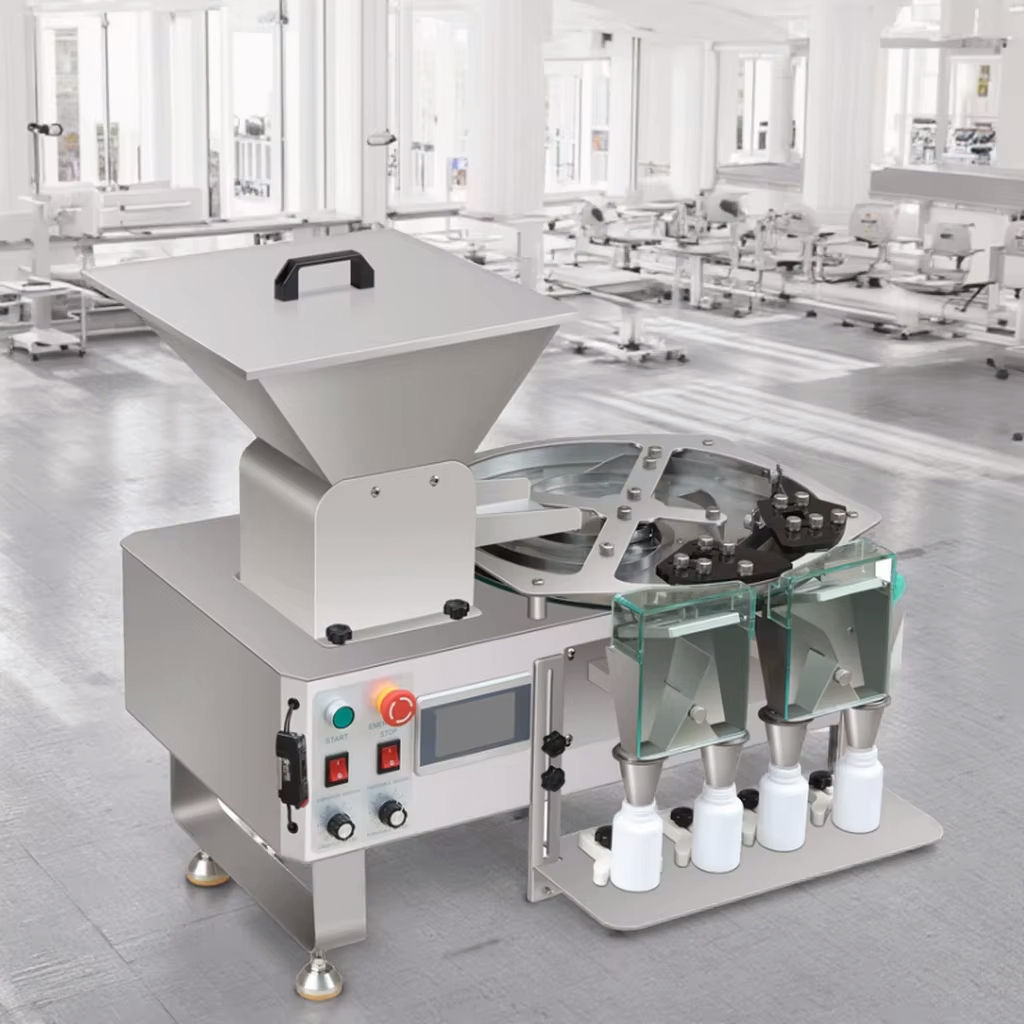

YL-4B semi-automatic counting machine is a granular item counting device specifically designed for the pharmaceutical, food, and health product industries. It is suitable for fast and accurate counting and bottling of various specifications of capsules, soft capsules, tablets, sugar coated tablets, etc. It is easy to operate, has stable performance, and high efficiency, making it an ideal choice for small and medium-sized production enterprises or laboratories.

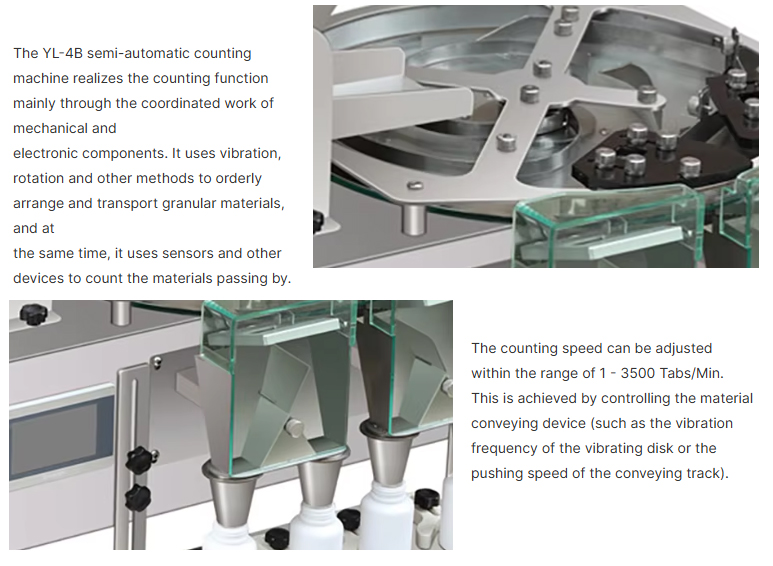

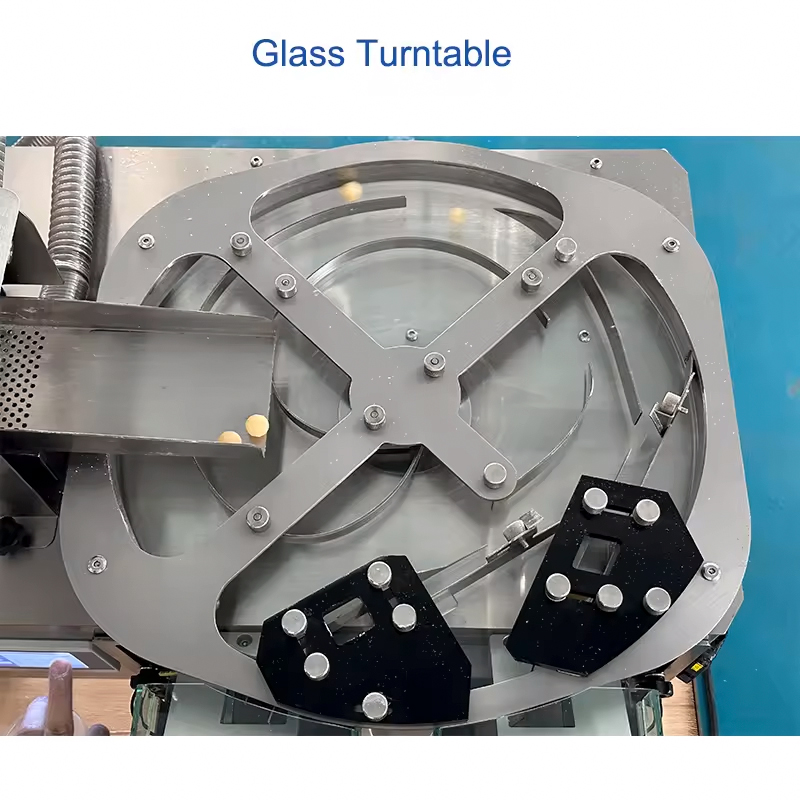

The tablets or capsules are uniformly conveyed to the feeding channel through a vibrating disc.
When the material passes through the feeding channel, the infrared sensor performs real-time counting.

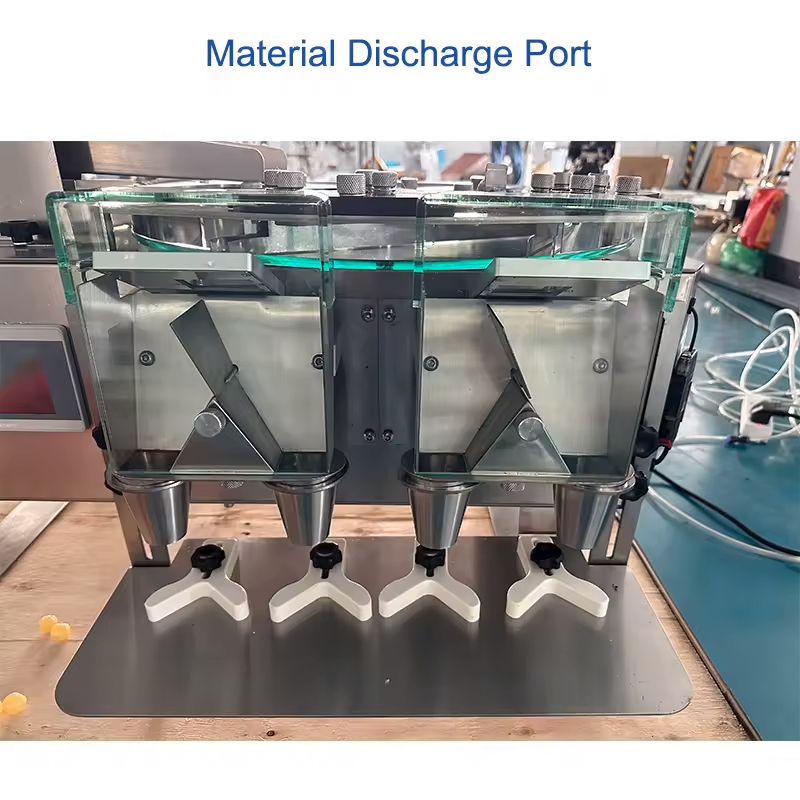

After reaching the set quantity, the material automatically falls into the bottle and waits for the next cycle.
Bottle replacement requires manual operation and is suitable for small batch and multi variety packaging.
| Model | YL-4B |
|---|---|
| Capacity | 1000-4000pcs/min |
| Materials | 00-5# capsules, soft capsules, diameter 5.5-18mm tablets, special-shaped tablets, sugar-coated tablets, 6-16mm pills |
| Loading range | 2-9999(adjustable) |
| Voltage, power | AC 220V/50HZ 110V/60HZ 0.1KW |
| Bottle height | 40-190mm |
| Bottle mouth | 10-500m round and square bottle |
| Hopper capacity | 10L |
| Size | 820x600x720mm |
| N.W | 65kg |
| Packing dimensions | 920x780x930mm |
| G.W | 87kg |
| Remarks | The speed of production is related to the variety, size, size and quantity of bottles. |
Adopting an imported photoelectric induction system, the counting error is less than ± 1%.
Double row cutting to improve production efficiency.
Suitable for various shapes of particles such as tablets, soft capsules, hard capsules, etc.
Suitable for materials of different sizes.
meets GMP standards, easy to clean, and corrosion-resistant.

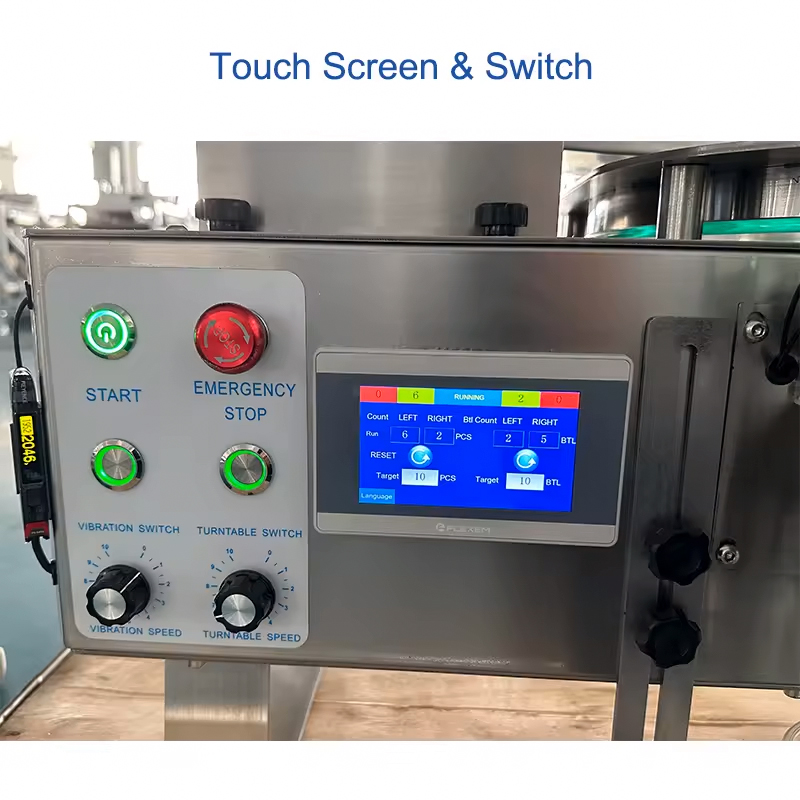

LED operation panel, intuitive parameter settings.
Pharmaceutical industry: quantitative bottling of various tablets, capsules, and pills.
Health product industry: packaging counting for vitamins, soft capsules, etc.
Food industry: bottling of small grain foods, candies, etc.
Chemical industry: Quantitative counting and bottling of small particle products.
