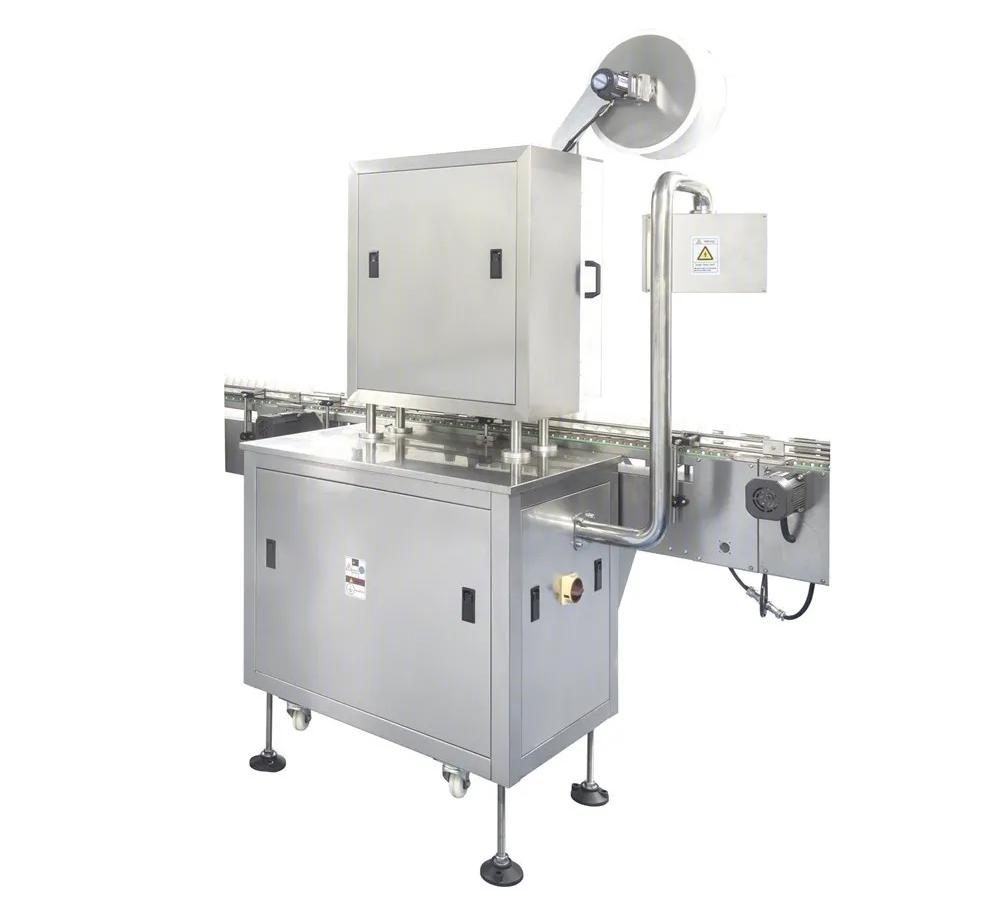

High - Speed Special Automatic Desiccant Slicer And Canning Machine PBGZ - 160, It is an automated equipment specifically designed for the processing of desiccants. It can automate the slicing and canning process of desiccants, effectively improving the efficiency and accuracy of desiccant production, and reducing errors and costs caused by manual intervention.

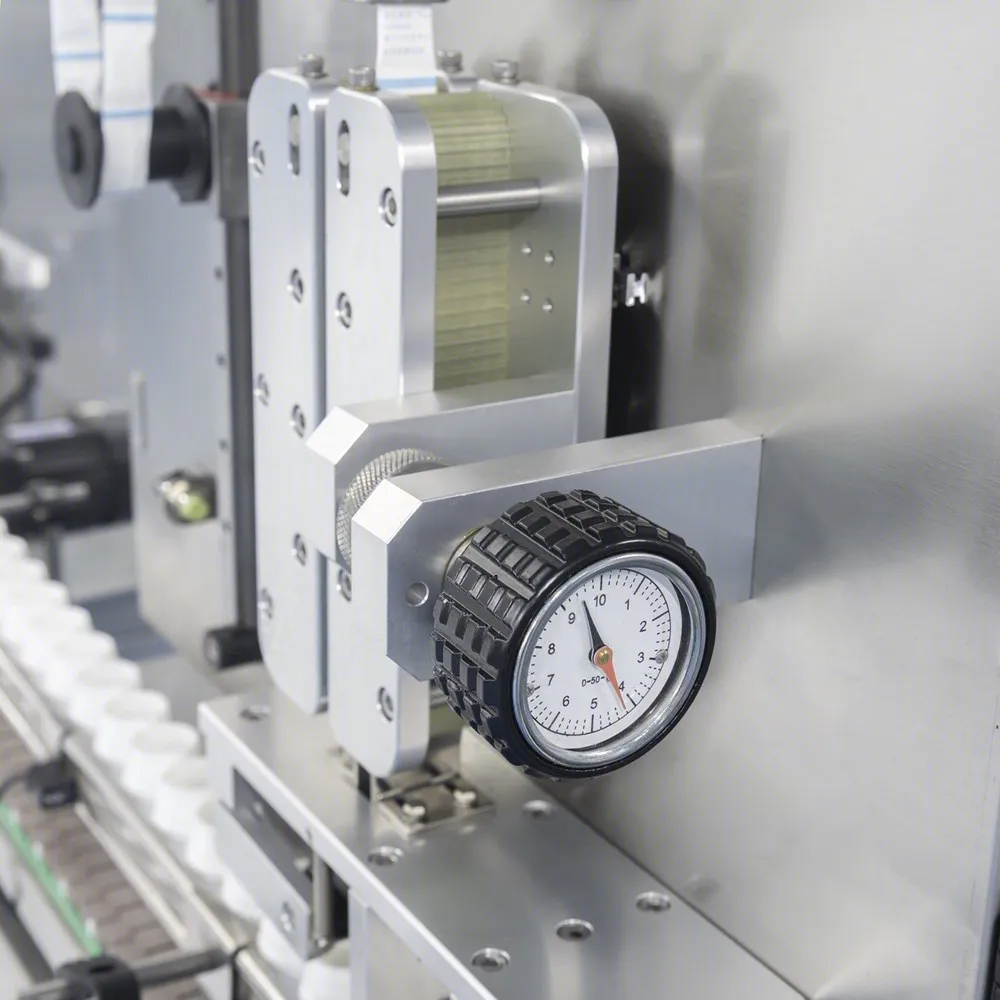

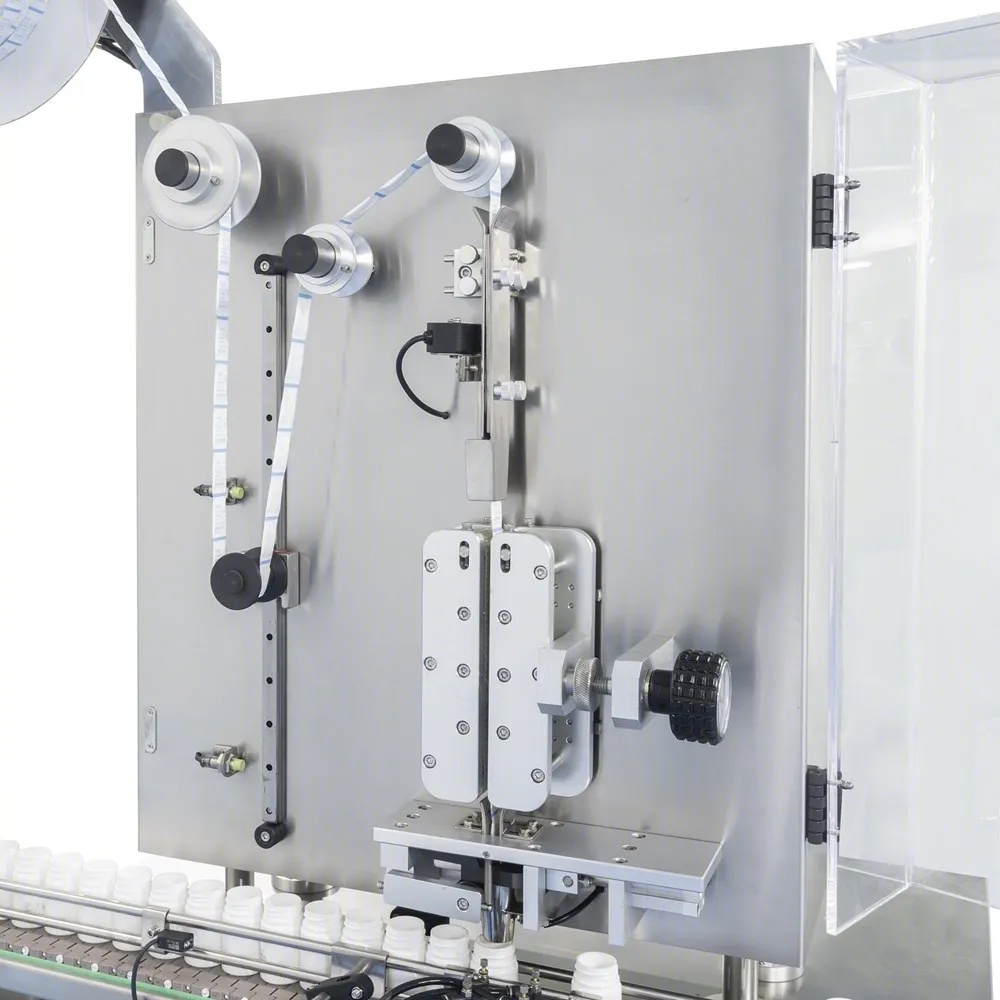

1. Slicing section:The desiccant raw material is transported to the slicing station through the feeding device. The cutting system of the equipment uses sharp cutting tools or cutting components based on preset parameters (such as thickness, etc.) to accurately cut the desiccant under power drive, cutting the raw material into slices of specified size.

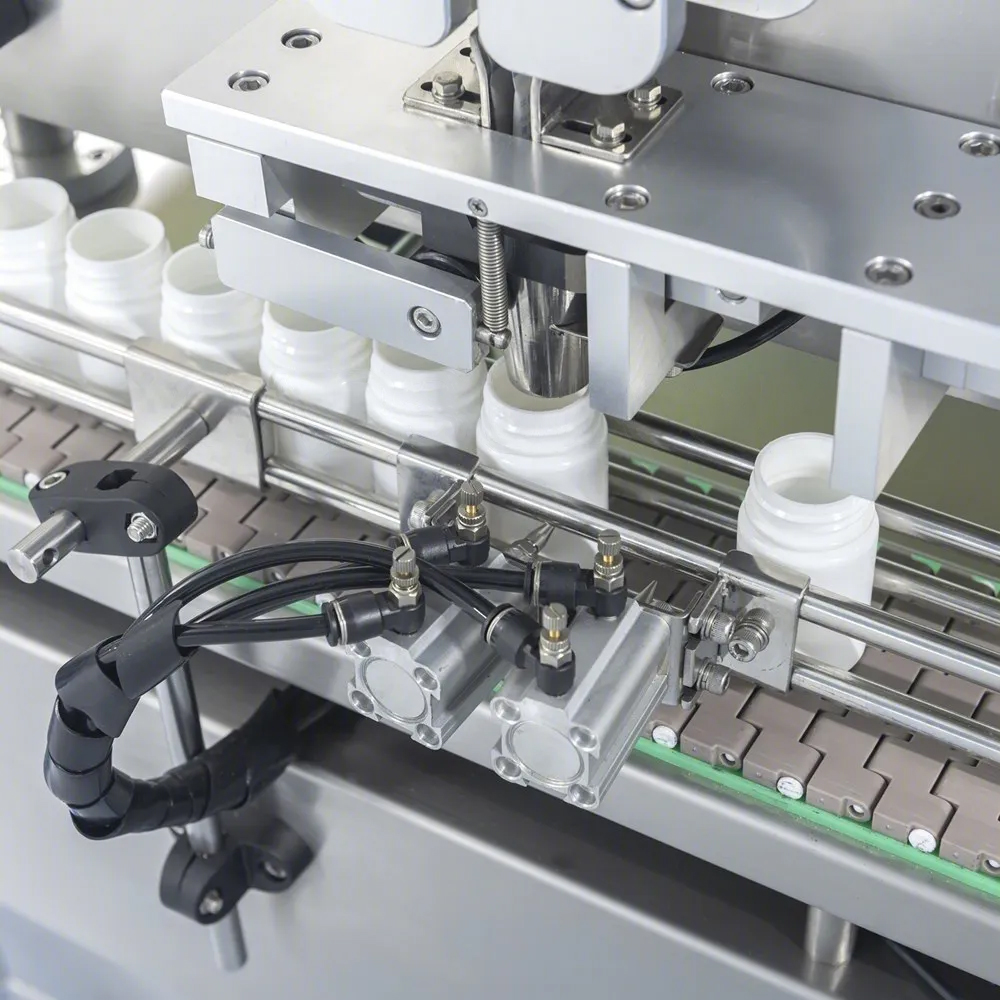

2. Jaring section: The cut desiccant tablets are transported to the canning area through a conveying device. Through positioning and filling mechanisms, the desiccant tablets are accurately and quantitatively loaded into the corresponding cans, completing the canning process. The entire process is coordinated and monitored by the control system to ensure orderly operation of each link.
| Model | PBGZ-160 |
|---|---|
| Output | 20~130 bottles/min |
| Bottle Size | 15~300ml |
| Voltage | 220V 50/60Hz, single-phase |
| Power | 0.5 KW |
| Air Consumption | 0.4 Mpa / 0.3m³/h |
| Dimension (L*W*H) | 1600*750*1800 mm |
| Weight | 280 KG |
High speed and efficiency: With a high operating speed, it can complete the slicing and canning of a large amount of desiccant in a short period of time, meeting the needs of large-scale production.
High degree of automation: The entire process from slicing to canning runs automatically, reducing manual operation and labor intensity, while improving production stability and consistency.
High precision: It can accurately control the thickness of desiccant slices and the quantity and position of cans, ensuring the uniformity of product quality.
Strong professionalism: Designed for the characteristics of desiccants, it can adapt to the processing of different types of desiccants and has a wide range of applicability.
Easy to operate: Equipped with a user-friendly interface, operators can proficiently operate the equipment after simple training.
Food industry: Used for the production of desiccants in food packaging to prevent food from getting damp and spoiling, and to extend the shelf life of food.
Pharmaceutical industry: producing desiccants for drug packaging, ensuring a dry storage environment for drugs, and maintaining drug stability and effectiveness.
Electronics industry: Electronic components are prone to moisture damage during storage and transportation, and the desiccant produced by this equipment can be used for moisture-proof packaging in the electronics industry.
Textile industry: prevent textiles from getting damp and moldy during storage and transportation, and maintain textile quality.
