The DZH-120 Horizontal Automatic Cartoning Machine is designed for high-speed, efficient, and automated cartoning of various products such as bottles, blister packs, sachets, tubes, and more. It is widely used in pharmaceuticals, health supplements, cosmetics, food, and electronics industries.

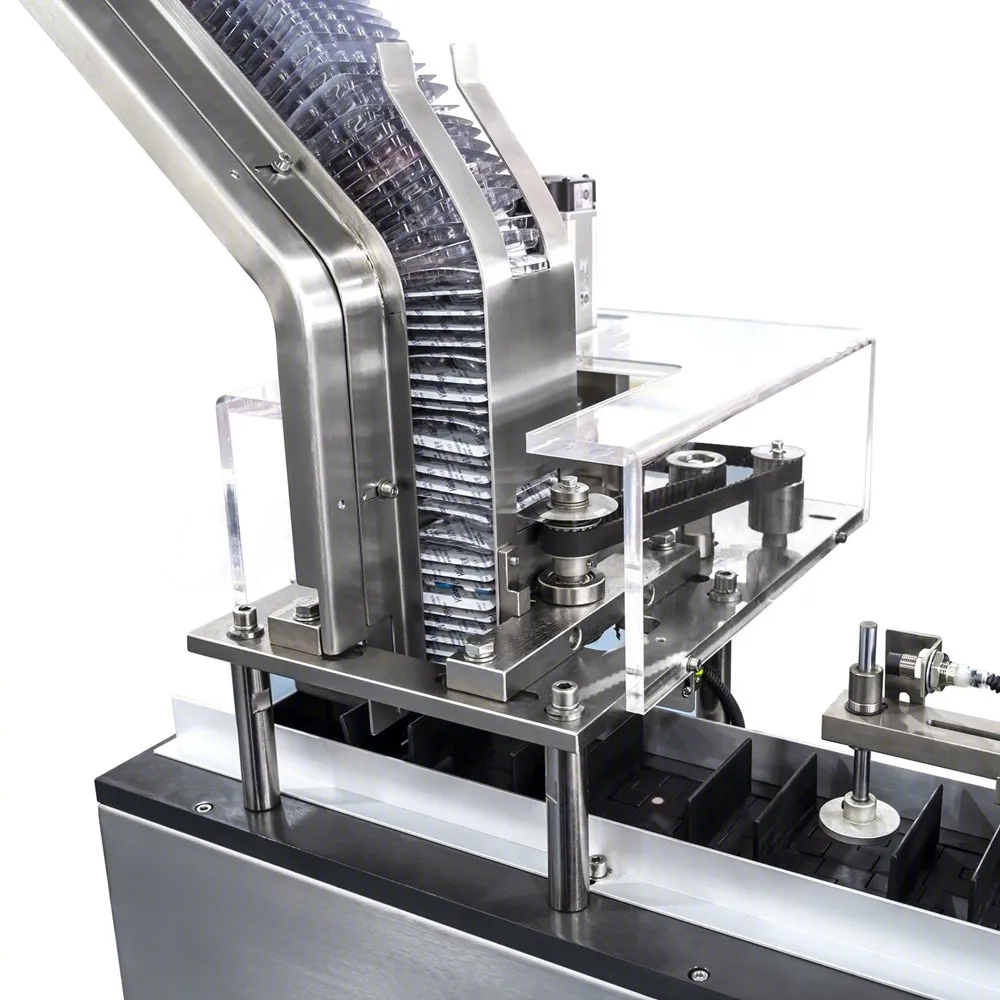

Product Feeding: Products are fed into the positioning device through a conveyor belt.

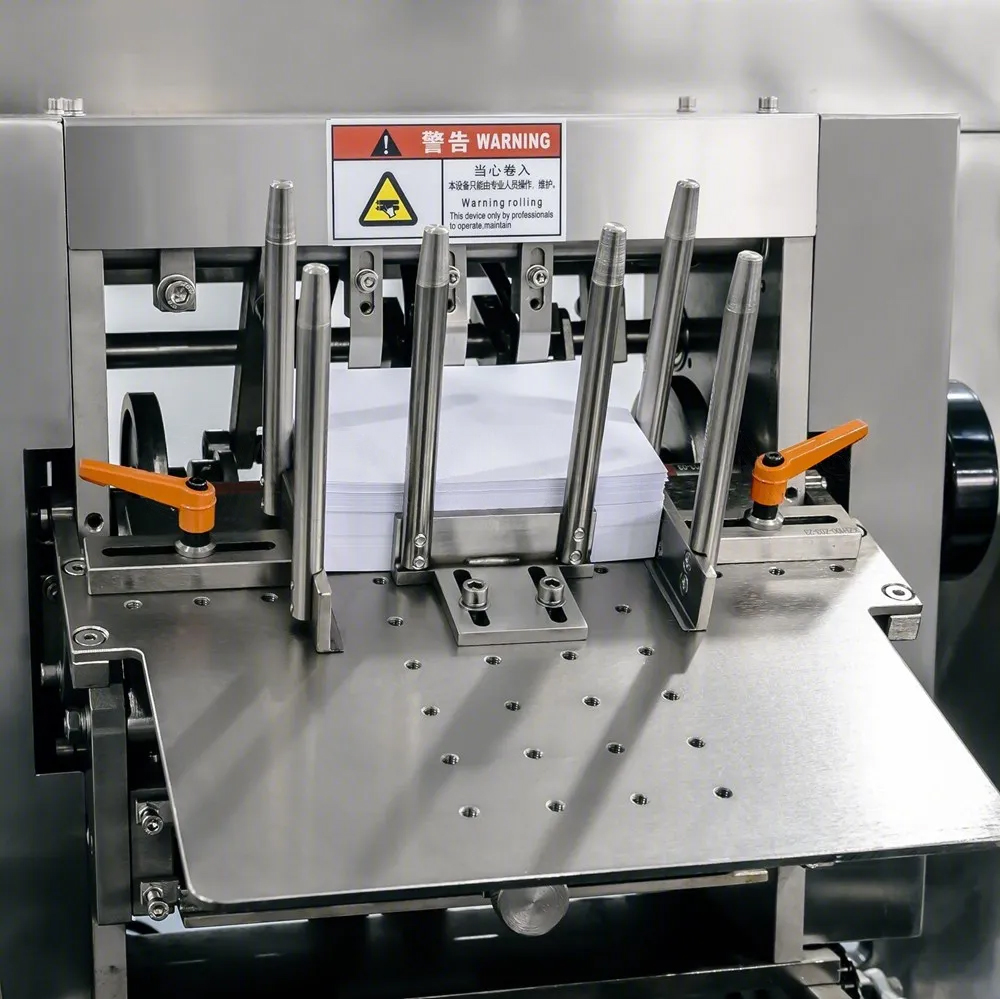

Leaflet Insertion (if available): Automatically grabs and folds the instruction manual into the box.

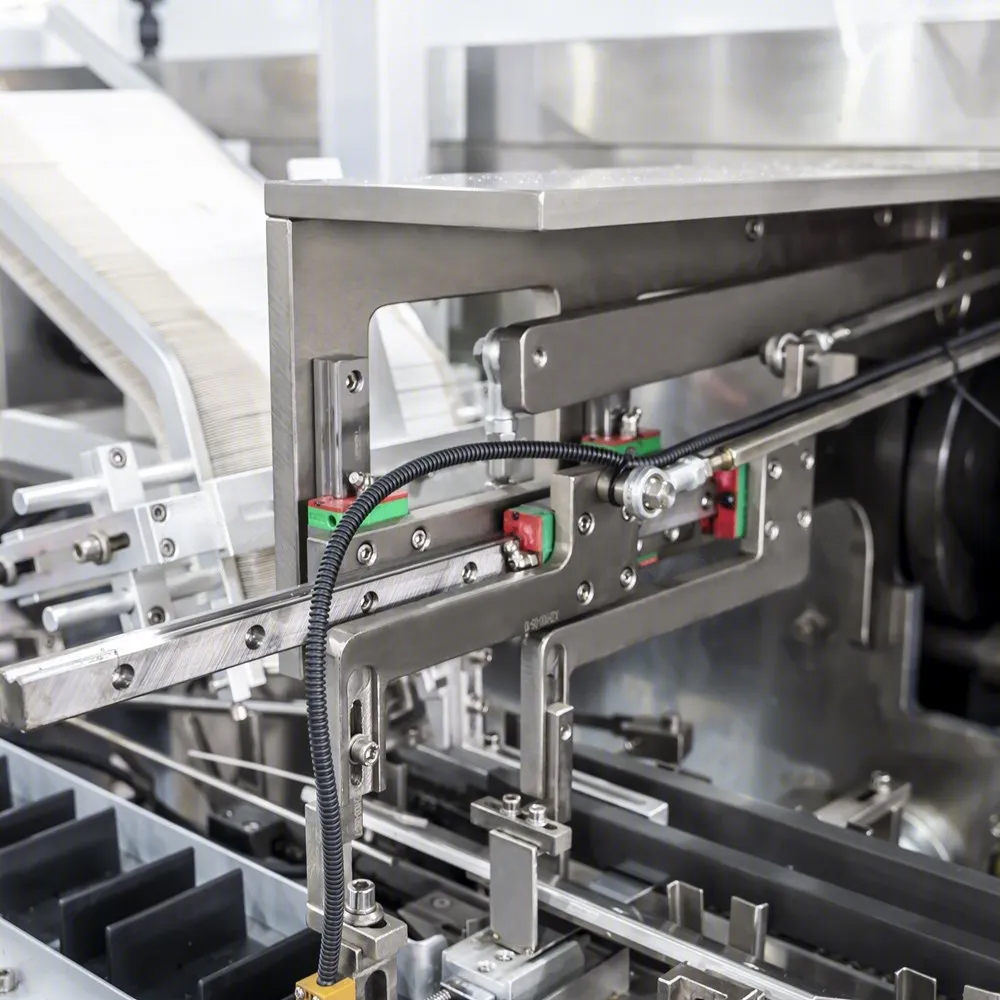

Carton Opening: Suction cups grab empty paper boxes from the box library and stretch them into shape using a robotic arm.
Product Loading: The push rod mechanism pushes the product along with the instruction manual into the formed paper box.
2. Hot melt adhesive type (optional): Sealed with hot melt adhesive.
Finished Product Output: Products that have been boxed are sent out through a conveyor belt.
| Model | DZH-120 |
|---|---|
| cartoning speed | 30-120 cartons/min |
| carton quality requirements | 300-350g/m² |
| dimension range of carton | (60-200)mm×(25-85)mm×(15-65)mm |
| user manual unfolded size range | L(80-300)×W(70-210)mm |
| user manual folded size range | L(70-210)×W(20-40)mm |
| total power | 220V 50Hz 1.5Kw |
| work pressure | 0.5-0.7mpa |
| air consumption | 15-20m³/h |
| dimensions | 3150 mm×1180 mm×1950mm |
| net weight of machine | about 1500kg |
High speed operation: up to 50-120 boxes/minute.
PLC+touch screen control: easy to operate, adjustable parameters.
High degree of automation: Automatically complete processes such as opening, loading, sealing, and removing non-conforming products.
Compatible with multiple product shapes and sizes: modular design, easy changeover.
Unqualified product removal system: prevent missing or incorrect products from entering the market.
304 stainless steel structure: compliant with GMP standards, easy to clean, corrosion-resistant.
Scalable functions: can be equipped with modules such as coding machine, manual folding machine, hot melt adhesive machine, etc.
Medicine bottles (tablets, capsules)
Aluminum plastic blister board (such as tablet board)
Suppositories, small boxed medications
Manual automatic packaging
Meet the requirements of GMP certified production line
Vitamin bottle, fish oil capsule bottle
Herbal extraction product packaging
Chewable tablets, effervescent tablets and other packaging
Small bag candy, seasoning, tea packaging box
Protein powder and meal replacement powder packaged in bags and boxes
Box packaging for individual items such as energy bars and chocolate bars
Sample of facial mask bag, skin care hose and perfume
Retail boxed products such as soap and toothpaste
Small electronic components, headphones, chargers
Packaging of spare parts such as batteries and data cables
Disposable syringes, needles, medical gloves, etc
Test strips, small diagnostic equipment
If you are looking for the Horizontal Automatic Cartoning Machine DZH-120, please feel free to contact us anytime!
