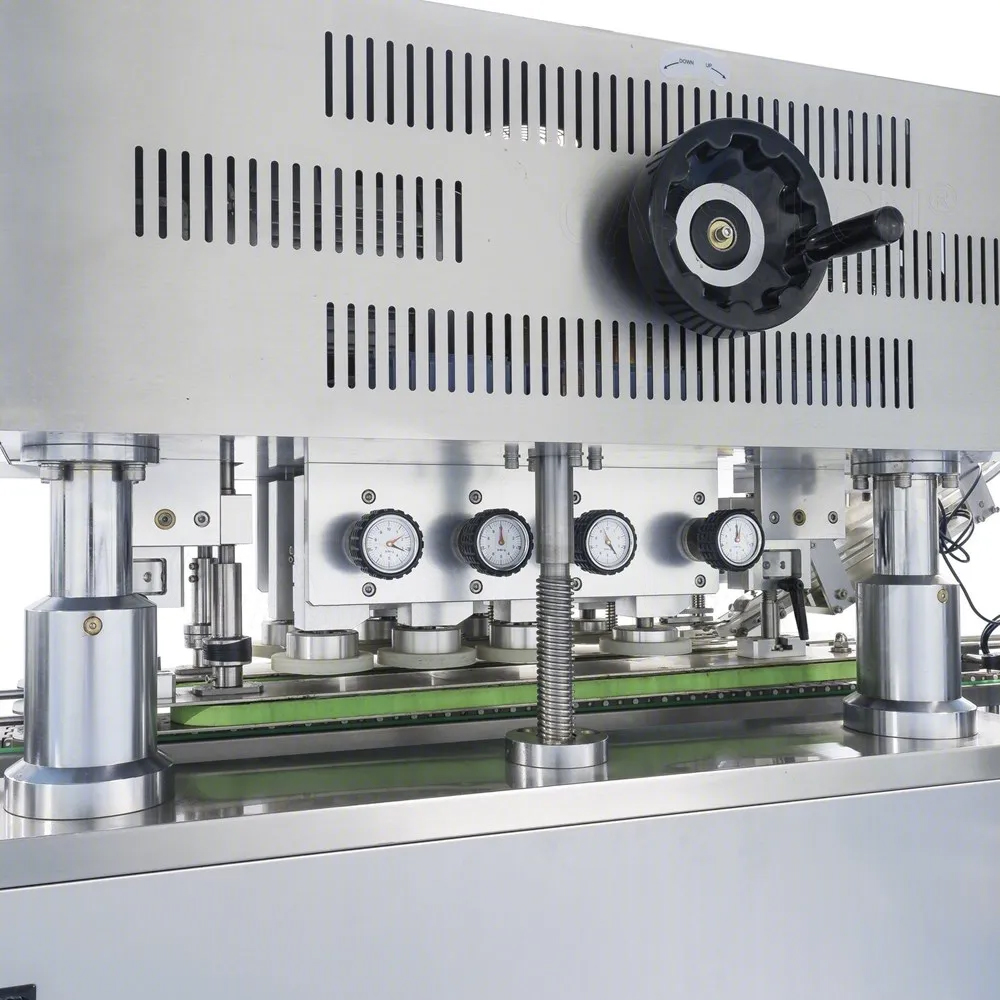

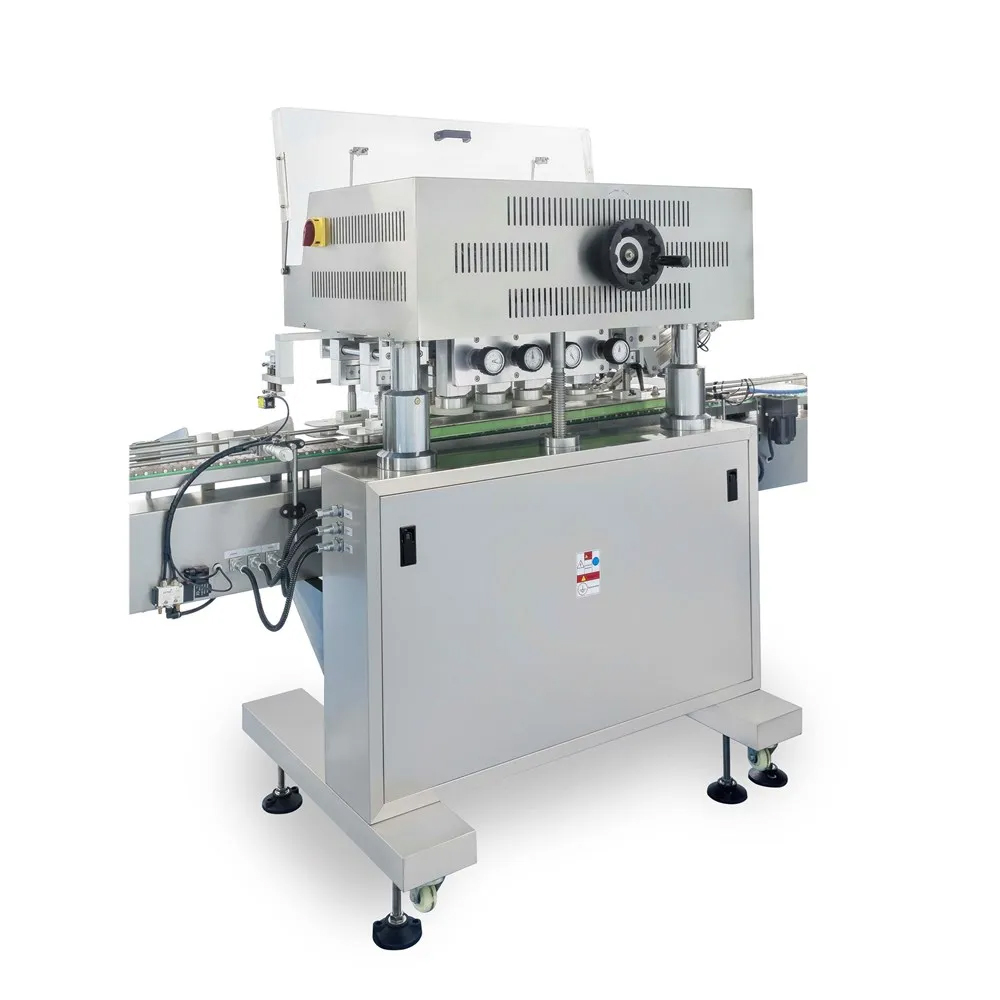

The PBX-160 High-Speed Capping Machine is designed to efficiently screw bottle caps onto containers. The working procedure involves clamping and conveying the container bodies using two synchronized belts, while three sets of high-elastic, durable rubber wheels securely screw the caps onto the bottles. This machine is built in strict adherence to pharmaceutical GMP standards and technological requirements. To accommodate various container shapes, including round, rectangular, and most irregular bottles, you only need to adjust the distance between the two synchronized belts and the four sets of rubber wheels, without the need for changing any spare parts.
Bottle conveying: Bottles are conveyed to the capping section through an automatic conveyor belt. The speed of the conveyor belt can be adjusted according to production needs.
Automatic bottle cap placement: The bottle cap is extracted from the storage area by an automatic cap system and accurately placed at the bottle mouth.
Bottle cap tightening: The machine uses a capping device to quickly and evenly tighten the bottle cap, ensuring the sealing between the cap and the bottle mouth.
Quality inspection: Some capping machines are equipped with quality testing devices to ensure that each bottle is properly sealed, such as tightness testing, cap error testing, etc.
Discharge: After the sealing is completed, the bottle continues to flow out through the conveyor belt, ready for further processing or packaging.
| Model | PBX-160 |
|---|---|
| Max.capacity | Max.160 Bottles/Min |
| Size of cap | Dia. 19~65 mm |
| Size of bottle | 15~250 ml |
| Voltage | AC220V, 50Hz, single phase |
| Power | 2500 W |
| Overall dimension | 2600 *1100*2000 mm |
| Weight | 580kg (with conveyor) |
High speed production: PBX-160 has extremely high production speed and can complete a large number of bottle caps in a short period of time, making it suitable for large-scale production lines.
Efficiency: Its advanced automation control system ensures smooth bottle cap assembly process, reduces manual intervention, and improves production efficiency.
Accurate bottle cap tightening: The machine has a precise tightening system to ensure stable tightness of the bottle cap, avoiding problems such as looseness and air leakage.
Diversified applications: This device can be adjusted according to different bottle shapes, sizes, and bottle cap types, and is suitable for a variety of bottled products.
Easy to operate and maintain: PBX-160 is equipped with a user-friendly interface, allowing users to easily operate and perform routine maintenance and adjustments.
Stable and reliable: Using high-quality materials and advanced technology, the equipment operates stably and is durable, adapting to high load production environments.
Food industry: used for sealing bottled juices, sauces, beverages, seasonings, etc.
Pharmaceutical industry: suitable for sealing pharmaceutical bottles, health product bottles, and bottled pharmaceuticals.
Cosmetics industry: widely used for sealing bottled products such as cosmetics and skincare products.
Chemical industry: Can be used for sealing chemical product bottles to ensure the sealing of the liquid inside the bottle.
Beverage industry: It is particularly suitable for bottle capping of bottled water, carbonated drinks, and other beverages.
