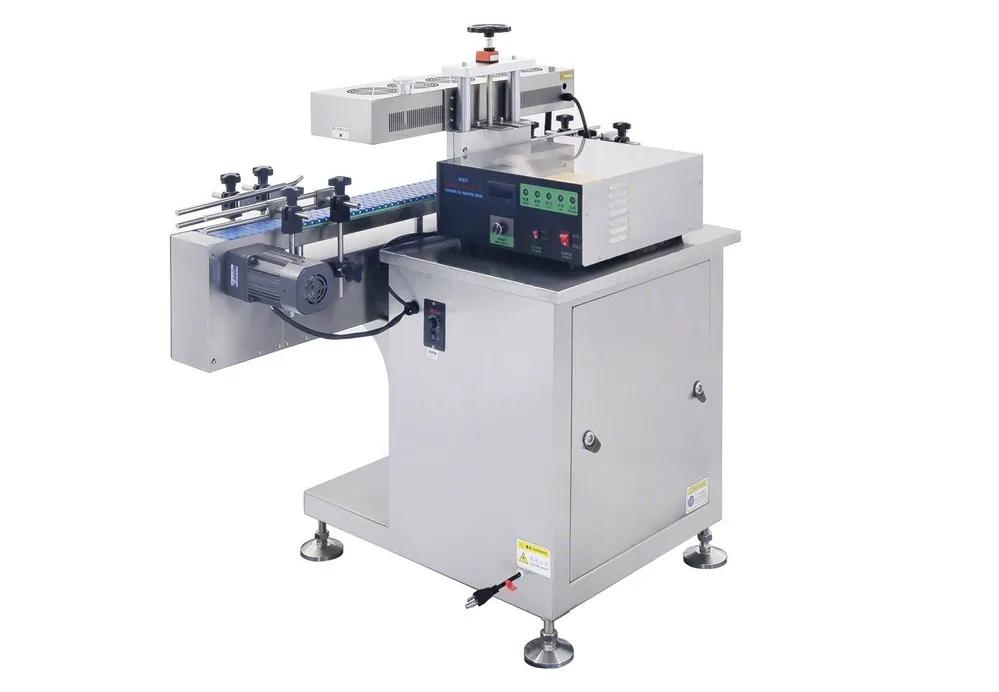

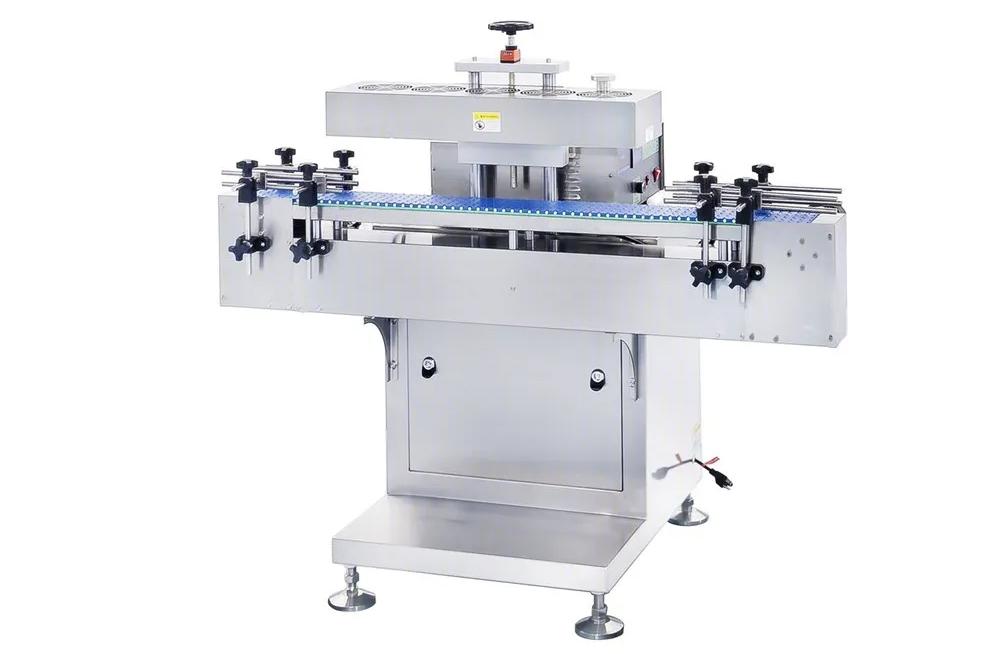

The CED-LF Electromagnetic Induction Aluminum Foil Sealing Machine is an advanced sealing device designed for airtight and tamper-evident sealing of containers (such as bottles, jars, and tubes) using aluminum foil liners. It utilizes electromagnetic induction heating to bond the foil to the container opening, ensuring a hermetic seal that enhances product freshness, prevents leakage, and improves shelf life.

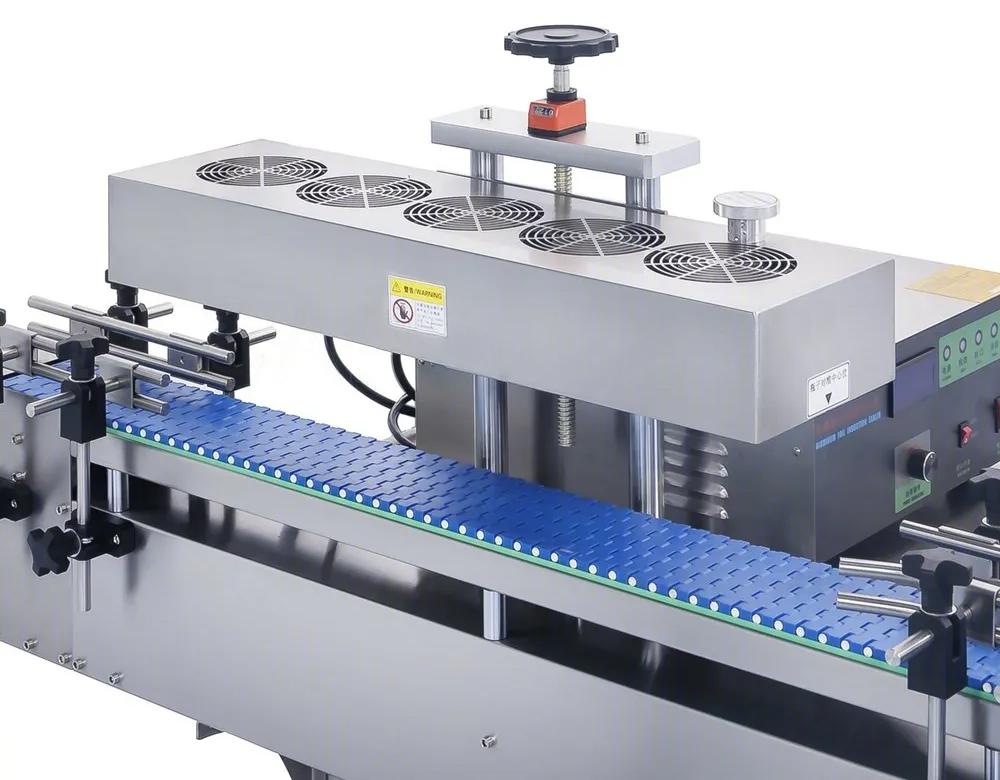

Induction Heating: A high-frequency electromagnetic field is generated by the induction coil.
Foil Activation: The aluminum foil liner (with a heat-sealable layer) is placed on the container mouth.
Heat Generation: When the container passes under the induction coil, eddy currents are induced in the aluminum foil, rapidly heating it.
Bonding Process: The heat melts the sealing layer, fusing the foil to the container lip.
Cooling & Seal Formation: After heating, the material cools, forming a strong, airtight seal.
| Model | CED-LF |
|---|---|
| Input power | ~220V±10%, 50/60Hz |
| Input current | ≤3.5A (when no bottles pass) ≤10A (when bottles pass) |
| Output power | Max. 3 kW (adjustable) |
| Output waveform | 60~80kHz (Sine wave) |
| Protection class of machine shell | IP21 |
| Sealing speed | 120~200 bottles/min (take this for example: polyethylene bottles whose diameter of mouth is ø34mm and that of body is ø40mm) |
| Sealing diameter of heating head | ø20mm~ø60mm |
High-Speed Sealing: Capable of sealing hundreds of containers per minute (depending on model).
Adjustable Power & Frequency: Allows optimization for different foil and container materials.
Non-Contact Heating: No physical contact with containers, reducing contamination risks.
Consistent Seal Quality: Uniform heating ensures reliable, leak-proof seals.

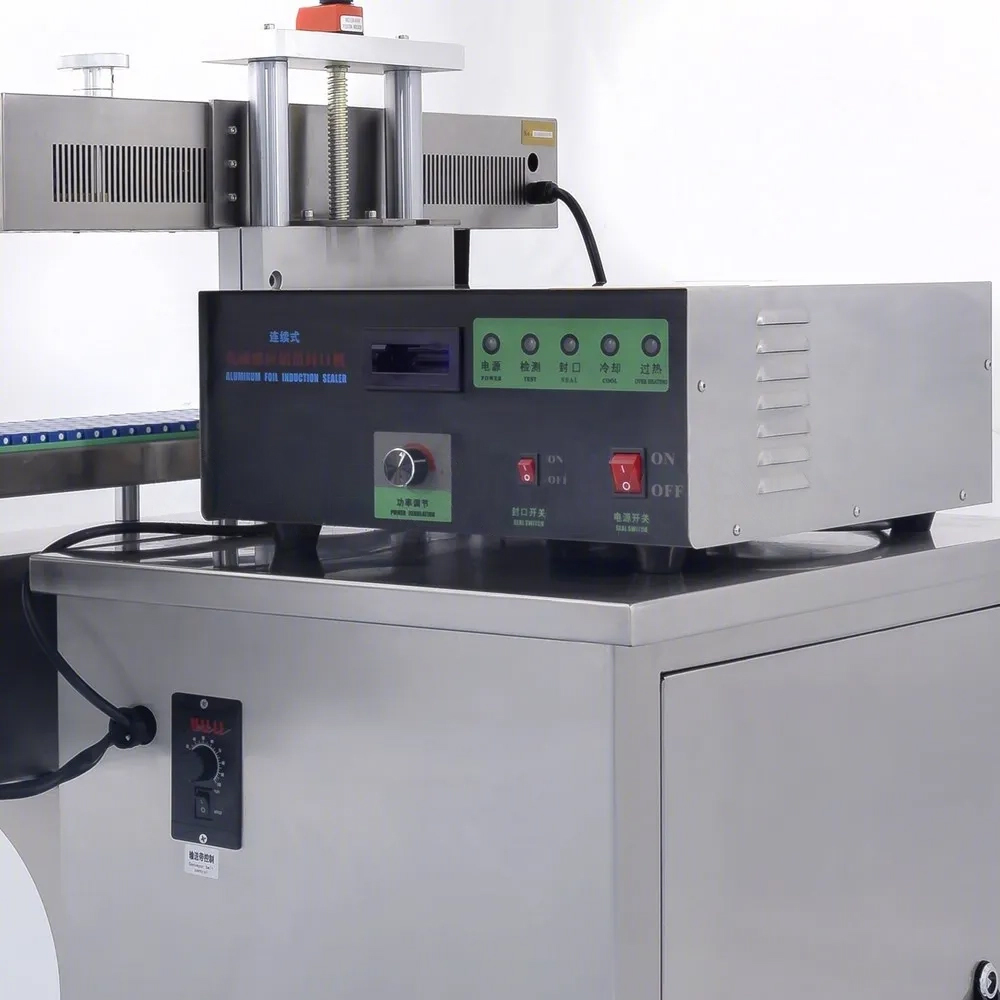

User-Friendly Interface: Digital controls for power adjustment, timing, and troubleshooting.
Energy Efficient: Only activates when containers are present, reducing power consumption.
Durable Construction: Made with industrial-grade materials for long-term reliability.
Safety Features: Overheat protection, emergency stop, and fault detection systems.
Pharmaceuticals: Medicine bottles, Syrup containers, Sample tubes
Food & Beverage: Juice & dairy bottles, Spice jars, Sauce containers
Cosmetics & Personal Care: Cream jars, Lotion bottles, Essential oil containers
Hemicals & Industrial Products: Adhesive bottles, Lubricant containers, Hazardous liquid packaging
