The DPH320H fully servo high-speed roller blister packaging machine is an efficient packaging equipment that adopts full servo control technology, designed specifically for blister packaging needs in industries such as pharmaceuticals, food, and electronics. This device has the characteristics of high speed, high precision, and high stability, and can complete the packaging of a large number of products in a short period of time while ensuring packaging quality. It is suitable for various materials such as PVC, PTP, aluminum foil, etc., and can effectively improve production efficiency and reduce production costs.
The DPH320H fully servo high-speed roller blister packaging machine achieves blister manufacturing through the principle of roller forming. Firstly, packaging materials such as PVC and aluminum foil are heated to form a blister shape. Then, accurately place the product (such as drugs, electronic components, etc.) into the formed blister. Next, the device uses hot pressing sealing technology to seal the blister with aluminum foil, ensuring the sealing of the packaging. Finally, the machine cuts the blister packaging into individual units through a cutting device, facilitating subsequent packaging and transportation.
| Model | DPH320H |
|---|---|
| Loading speed | 60-200time/min |
| Optional range of feed stroke | 100-280mm |
| Maximum forming area | 320×280mm |
| Maximum forming depth | 12mm |
| Motor Power | 3KW |
| Total power of power supply | 18.9KW |
| Power supply three-phase five-wire | 380/50 V/HZ |
| Cooling water | nominal volumetric flow rate |
| water pipe pressure | 0.1~0.15Mpa |
| Air pump | nominal solvent flow |
| Rated scheduling pressure | ≥0.5Mpa |
| Packaging material | tap water or back water |
| heat seal aluminum foil | 0.02×320mm |
| Formed aluminum foil | 0.15×260 mm |
| Dimensions | 4860×1420×2100 mm |
| weight | 4500kg |
Full servo control: driven by a full servo motor, ensuring precise and efficient operation, reducing energy consumption and mechanical wear, and extending equipment life.
High speed production: up to 320 packaging units per minute, suitable for large-scale production needs.
High stability: Adopting advanced roller forming technology, the work is stable, reducing errors and downtime in production.
High precision packaging: Using a precise hot press sealing system to ensure the sealing and integrity of each packaging unit.

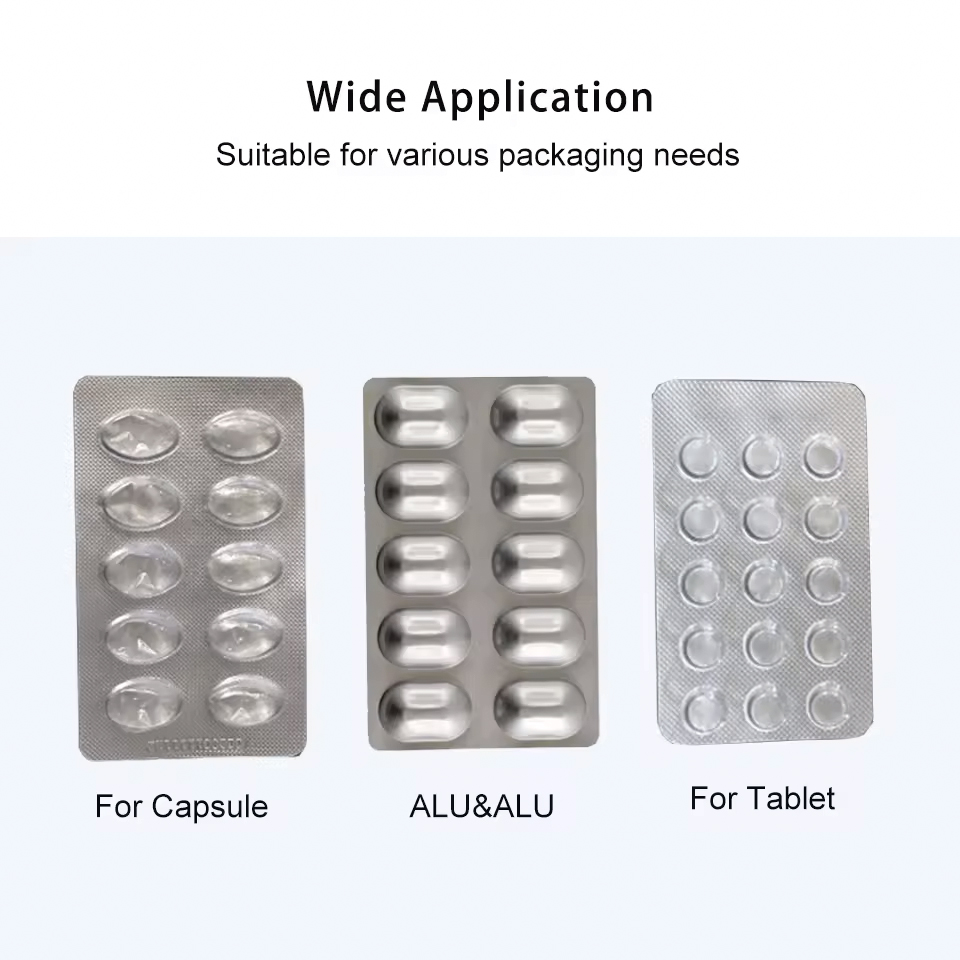

Multi functional adaptability: Supports different types of packaging materials (such as PVC, PTP, aluminum foil, etc.) and can adapt to product packaging of different sizes.
Intelligent operation interface: equipped with a touch screen control system, easy to operate, convenient for adjusting production parameters and monitoring equipment status.
Efficient and energy-saving: Servo drive technology reduces equipment energy consumption, reduces production costs, and meets environmental protection requirements.
Pharmaceutical industry: used for efficient packaging of drugs, especially capsules, tablets, etc., to ensure product safety and hygiene.
Food industry: suitable for packaging candies, nuts, health products and other foods to ensure long-term preservation.
Electronic product industry: Packaging small electronic components, chips, electronic devices, etc. to protect products from external damage.
Chemical industry: used for packaging small chemicals and particulate matter to ensure safe transportation of products.
Daily consumer goods industry: packaging for daily consumer goods such as cosmetics and hygiene products, ensuring aesthetics and convenient use.
If you are looking for full servo high speed roller blister packaging machine DPH320HⅡ, please feel free to contact us anytime!
