The DPP-140 blister packaging machine is an automated and efficient equipment mainly used to package small items such as drugs, food, electronic products, etc. on plastic blister and aluminum foil. This device is widely used in industries such as pharmaceuticals, food, and chemicals, ensuring the quality of product packaging and production efficiency, and meeting the needs of large-scale production.

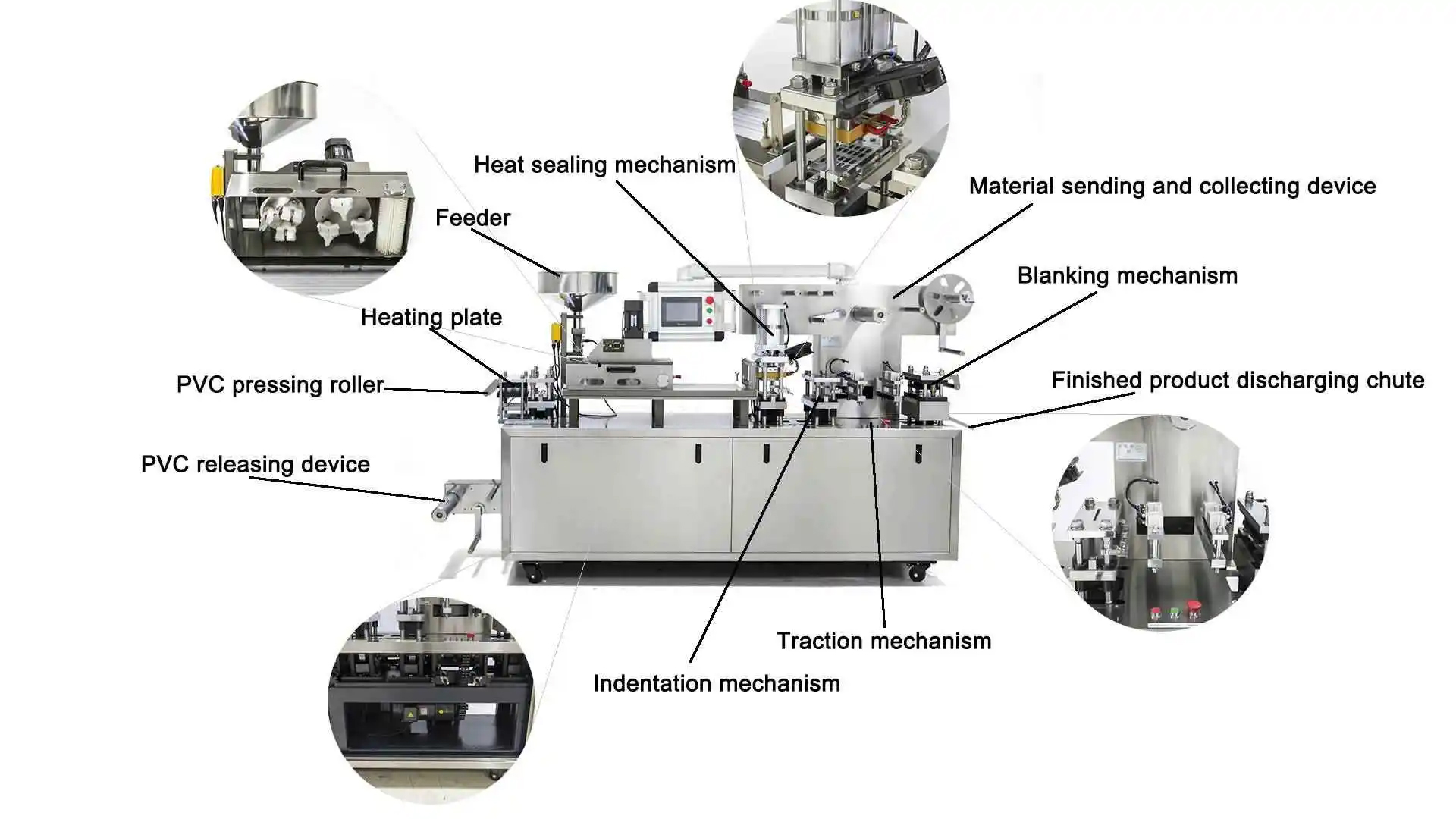

The working principle of DPP-140 blister packaging machine is to transport packaging materials (such as PVC, PTP, aluminum foil, etc.) to the forming device through a mechanical arm, form blister after heating, and then place the product in the predetermined position. Next, the machine will cover the blister with aluminum foil and package it through hot pressing, ultimately completing the packaging. After packaging, the machine will automatically cut the blister, making each packaging unit independent for subsequent packaging and transportation.
| Model | DPP-140 |
|---|---|
| Cutting frequency | 10-50 times/min |
| Capacity | 7200strip/h |
| Max shaping areas and depth | 140x120x28mm |
| Air pressure | 0.4-0.6Mpa |
| Power supply | 380V/220V 50Hz |
| Main motor power | 1.1kw |
| PVC hard pieces | 0.15-0.5*140mm |
| PTP aluminum foil | 0.02-0.035*140mm |
| Dialysis paper | 50-100g*140mm |
| Mould cooling | tap water or back water |
| Machine dimensions | 2050mm×526mm×1320mm |
| Net weight | 960Kg |
Efficiency: This device can complete the packaging of a large number of products in a short period of time, making it suitable for large-scale production.
Automated operation: The equipment has a high degree of automation, simple operation, reduces manual intervention, and lowers operational errors.
Precise packaging: Using high-precision hot pressing packaging technology to ensure that each bubble cap is tightly sealed and has a clean appearance.
Multifunctional: The DPP-140 model can adapt to different sizes of bubble caps and aluminum foil materials, supporting packaging needs for various products.
Safe and reliable: The equipment design complies with international safety standards, equipped with emergency shutdown devices and alarm systems to ensure the safety of the production process.
User friendly interface: Equipped with a touch screen control system, the user interface is simple and easy to operate, allowing for quick adjustment of production parameters.
Pharmaceutical industry: widely used for packaging drugs, especially for blister packaging of tablets, capsules and other drugs.
Food industry: suitable for packaging candy, nuts, snacks and other food products.
Chemical industry: used for packaging chemical small packaging products.
Electronic product industry: suitable for packaging small electronic components and equipment.
Daily consumer goods industry: packaging for products such as cosmetics and toothpaste.
If you are looking for Blister Packing Machine DPP-140, please feel free to contact us anytime!
