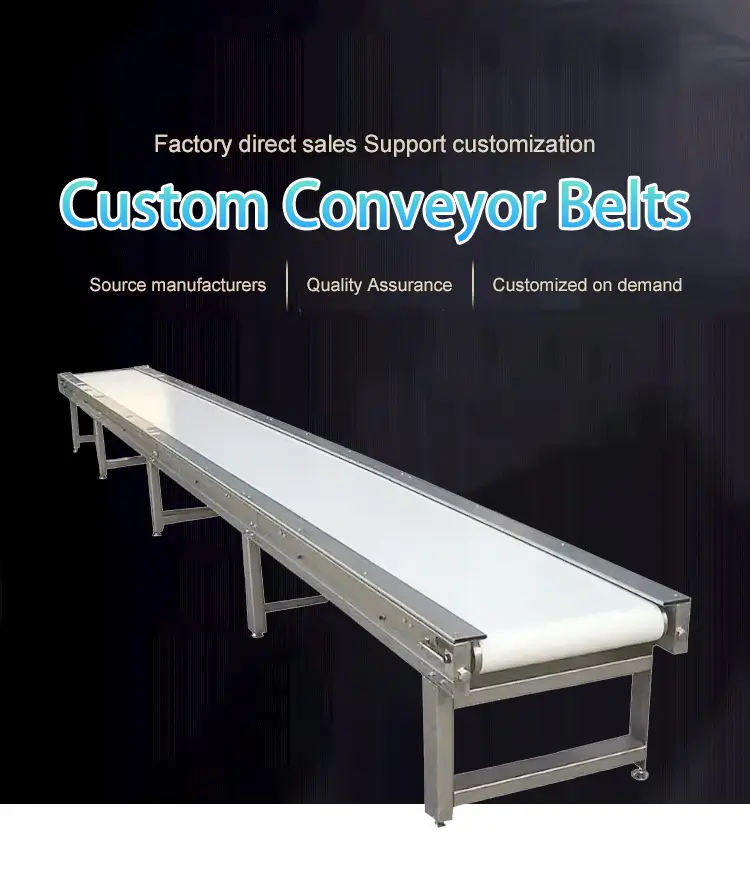

+Production DescriptionStainless Steel Frame Food Grade PVC Belt Conveyor System for Pharmaceutical/Food IndustryPVC Rubber Belt Conveyor is an efficient conveying equipment that uses a continuously running conveyor belt as a carrier to transport materials from one work point to another. The equipment has a simple structure, stable operation, and is easy to maintain. It is widely used in various industrial automation production lines and is one of the key equipment in modern material handling sy......

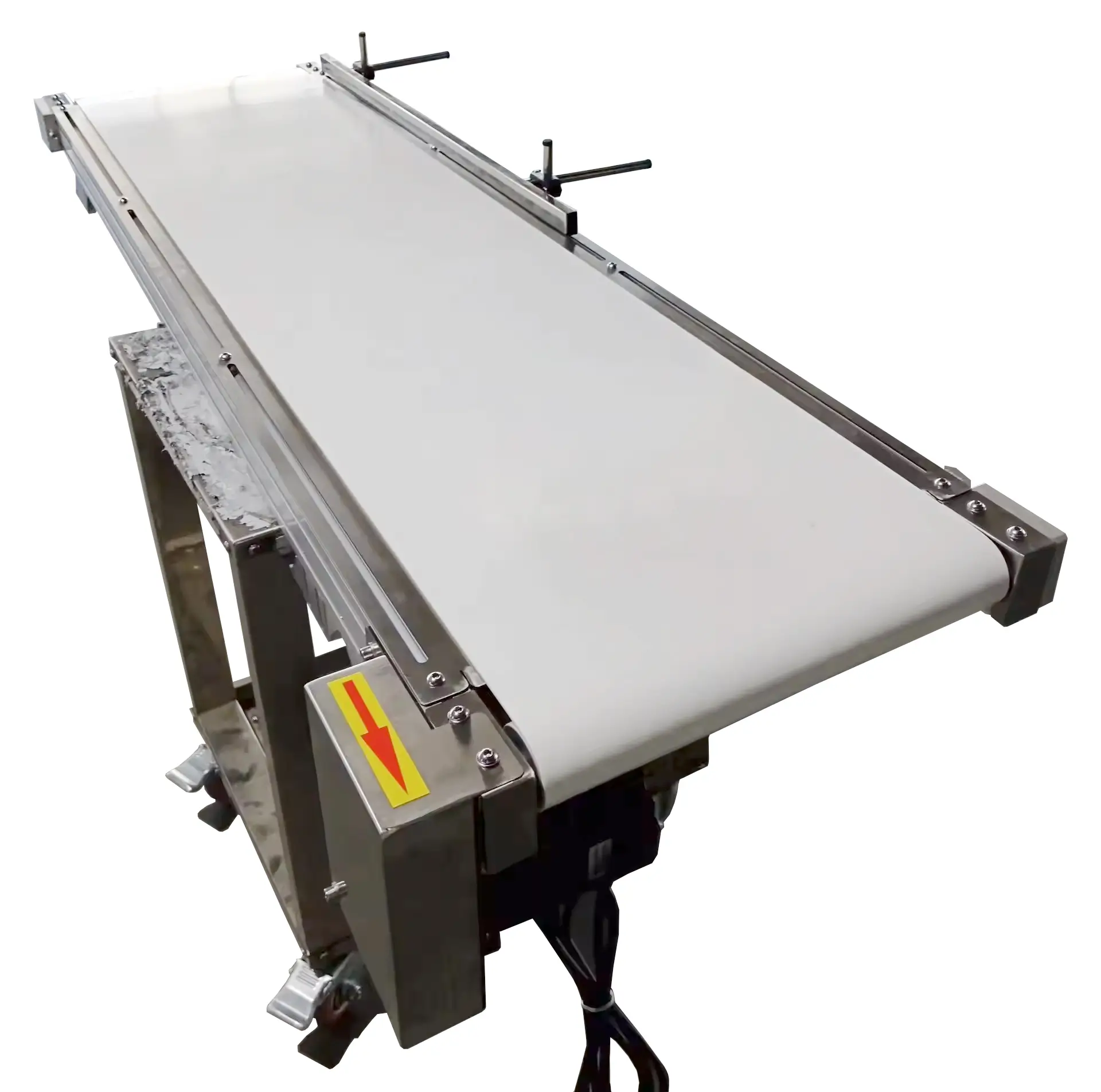

PVC Rubber Belt Conveyor is an efficient conveying equipment that uses a continuously running conveyor belt as a carrier to transport materials from one work point to another. The equipment has a simple structure, stable operation, and is easy to maintain. It is widely used in various industrial automation production lines and is one of the key equipment in modern material handling systems. This model adopts high-strength aluminum alloy profile frame, green PVC or PU conveyor belt, equipped with speed regulating motor and control system, and can customize size and function according to customer needs.
The belt conveyor drives the drum to rotate through the driving motor, and relies on the friction between the drum and the conveyor belt to make the conveyor belt run, thereby moving the animal material in the set direction. It usually consists of the following core components:
Drive device: including motor, reducer, providing conveying power;
Conveyor belt: circular belt structure, carrying materials;
Drum system: divided into active drum and passive drum, used to drive or support conveyor belts;
Bracket structure: usually made of aluminum profiles, stainless steel or carbon steel materials;
Adjustment device: used to adjust the tightness and deviation of the belt;
Control system: Optional functions include variable frequency speed regulation, timing control, infrared detection, etc.
| Belt Width | 100mm, 200mm, 300mm, 400mm, 500mm, 600mm, 650mm, 800mm, 1000mm, 1200mm, 1500mm etc. |
| Length | Customized according to customers' need |
| Height | Customized according to customers' need |
| Belt Material | Rubber, PVC, PU etc. Food grade belt is available |
| Frame Material | Carbon steel, Stainless steel, Aluminum |
| Driving Device | Electric motor or electric drum |
| Transmission Device | Chain |
| Conveying Speed | Fixed speed or variable speed |
| Application | Production line, Assembly line, Automatic production line, Packaging driver, cargo driver line |
Modular structure: The aluminum profile frame is flexible in assembly, easy to install and disassemble;
Smooth conveying: smooth operation, low noise, suitable for precision or fragile materials;
High adaptability: can be customized according to different length, width, and height requirements;
Speed regulation function: supports the speed regulator to adjust the conveying speed;
Energy saving and environmental protection: low power consumption, low energy consumption, green transmission solution;
Easy maintenance: belt replacement and motor maintenance are convenient and fast;
Support for expansion: It can be equipped with functional modules such as induction switches, counters, sorting systems, etc.
Pharmaceutical Industry: transports pills, capsules, bottled drugs, packaging boxes, etc.
Food Industry: transports bread, snacks, beverages, packaged foods, etc.
Electronic Manufacturing: conveying circuit boards, small parts, and assembly components.
Logistics Warehousing: parcel sorting and conveying system for express delivery.
Daily chemical products: cosmetics packaging line, assembly of cleaning and care products.
Toy Industry: Transporting parts and assembling components for easy operation by workers.
Hardware and Plastics: conveying mold parts, small hardware, plastic products, etc.
If you are looking for the PVC Rubber Belt Conveyor, please feel free to contact us anytime!
