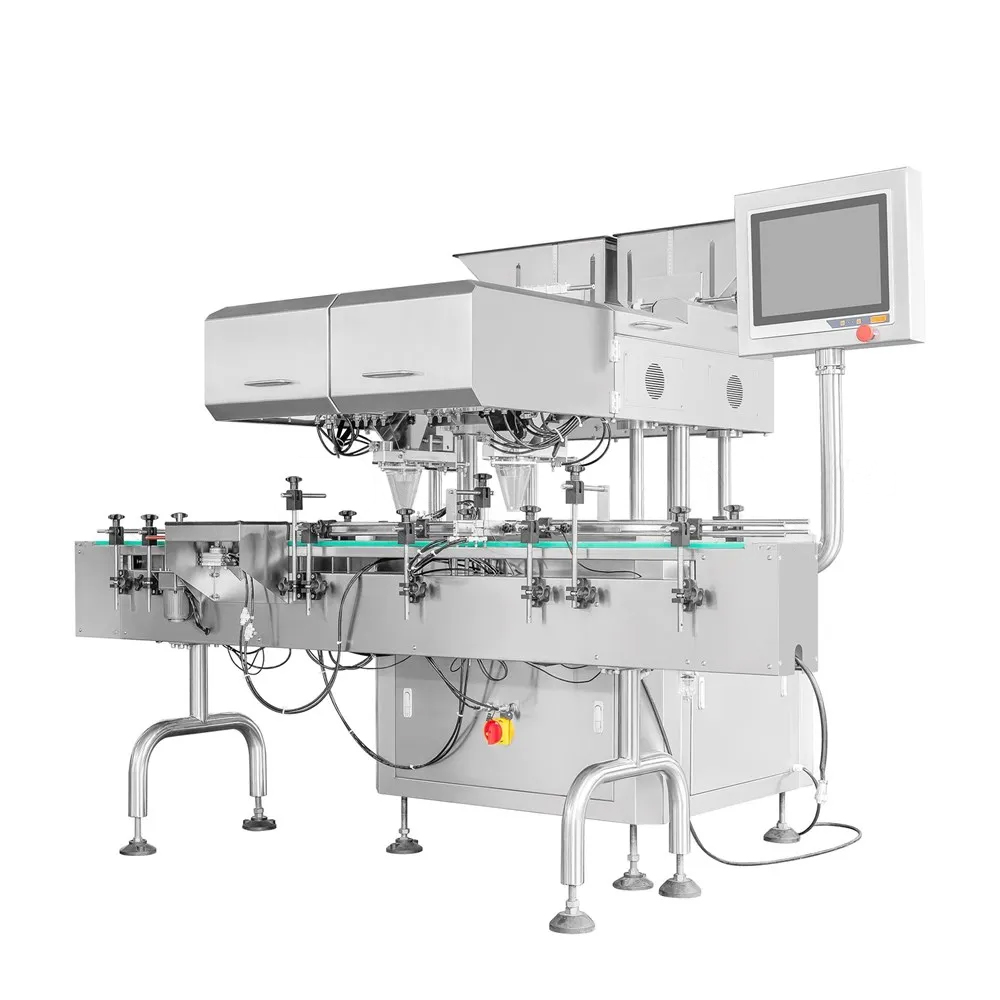

PBDS-16 Capsule Counting Machine is an efficient and accurate automated counting device designed specifically for capsule counting and packaging in industries such as pharmaceuticals and health products. This device adopts advanced electronic counting technology, which can achieve fast and accurate capsule counting, and sends the counted capsules into the packaging container through an automated conveying system. PBDS-16 is designed to be compact and suitable for small and medium-sized production lines, widely used in the pharmaceutical and nutritional industries.
Capsules automatically enter the counting area through the feeding system.
The device utilizes high-precision electronic sensors to accurately count each capsule through vibration and control systems. The system automatically completes the counting task based on the set target quantity.
The capsule counts through multiple counting channels to ensure optimized counting accuracy and speed.

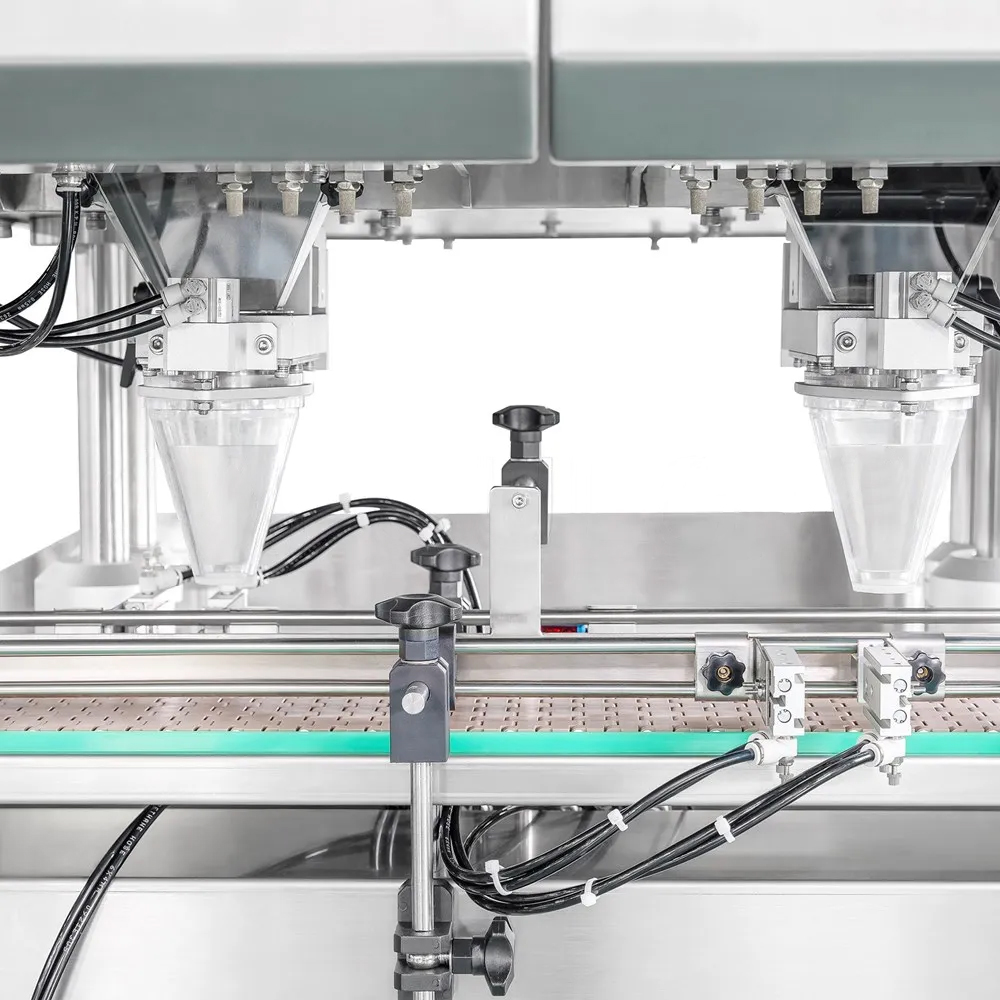

After counting, the capsules are automatically fed into the packaging container through a conveyor belt or other conveying system.
When the count reaches the set target or an abnormality occurs, the equipment will automatically stop and issue an alarm to ensure smooth production process.
| Model | PBDS-16 |
|---|---|
| Number of vibration orbits | 16 |
| Maximum production speed | 8000 pills/minute (depending on the size of the medicine) |
| Quantity | 1～9999 capsules |
| Drug Specifications | Thickness: 3～10mm Diameter: 3～20mm Length: 3～30mm |
| Bottle Diameter | 20～200mm |
| Bottle Height | 40～240mm |
| Power Supply | AC220V 50/60HZ |
| Power | 1.2KW |
| Air Pressure | 0.6Mpa |
| Air consumption | About 200L/min clean air |
| Dimensions | 2600×1640×1530mm |
| Silo Volume | 70 liters |
| Weight | About 700kg |
High precision counting: PBDS-16 adopts an advanced electronic counting system, which can ensure the accuracy of counting each capsule with minimal error.
Fully automated operation: The equipment operates automatically throughout the entire process, reducing manual intervention, improving production efficiency, and minimizing human errors.
Wide applicability: Supports capsule counting of different sizes, shapes, and materials, suitable for various pharmaceutical products.
Efficient production capacity: PBDS-16 can handle large quantities of production tasks and is suitable for use on fast production lines.
User friendly interface: equipped with a touch screen control panel, easy to operate, and production personnel can easily set counting targets and parameters.
Automatic cleaning function: The device is designed to facilitate cleaning and maintenance, avoiding cross contamination.
Pharmaceutical industry: widely used in automated counting and packaging of drugs, especially suitable for large-scale production pharmaceutical companies.
Nutritional industry: used for counting and packaging various health products, capsules, and tablets.
Food industry: suitable for counting and packaging granular foods such as candy, chocolate, nuts, etc.
Cosmetics industry: used for counting and packaging various cosmetic particles and capsules.
