The CDR-3A automatic electronic pill counter is an efficient and precise automated device designed specifically for counting and packaging solid particles such as drugs and health products. This device integrates advanced electronic counting technology and is equipped with a conveyor belt system, suitable for automated counting operations on large-scale production lines. CDR-3A adopts precision sensors and electronic control systems to ensure the accuracy and efficiency of counting, and is an essential equipment in industries such as pharmaceuticals and nutrition.

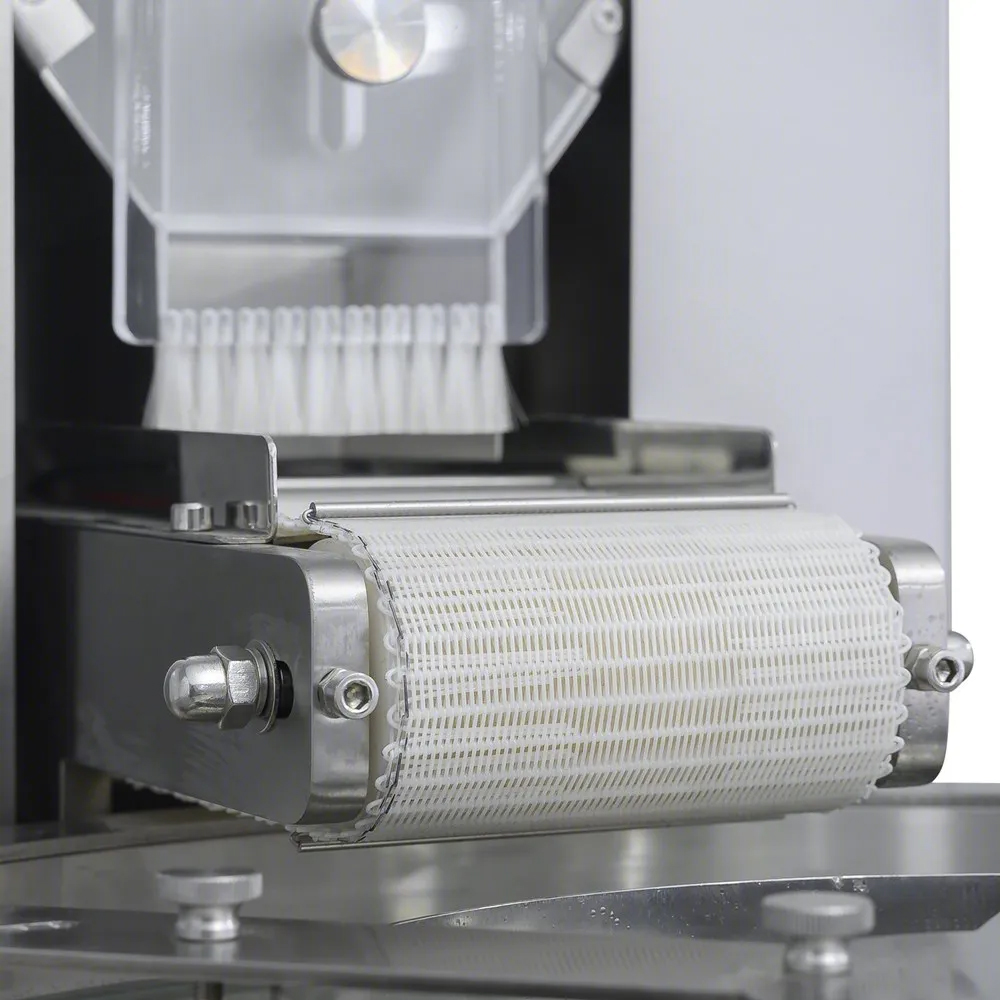

Pills or capsules automatically enter the counting area through the feeding port, and are fed into the counting area by a conveyor belt.
The device accurately counts each pill or capsule through advanced electronic sensors and vibration systems. The counting process does not require manual intervention, ensuring high accuracy.
After counting, the pills are automatically fed into the packaging container through the conveyor belt system, completing the packaging process.
When the pill count reaches the set quantity or there is an abnormality, the equipment will automatically stop and issue an alarm to ensure the smooth production process.
| Model | CDR-3A |
|---|---|
| Production Capacity | 1300 capsules/minute (data source is Capsule No. 0) |
| Grain counting accuracy | 99.99% |
| Quantity per bottle | 1-9999 can be set as desired |
| Applicable pharmaceutical range | Tablet: Maximum φ22mm; Capsule #00-#5 |
| Applicable bottle mouth size | kwφ20~25mm (can be customized according to customer requirements) |
| Power Specifications | 220V AC, 50/60 Hz |
| Power consumption | 0.2KW |
| Air consumption (m3/h) | 0.1 |
| Air pressure (mpa) | 0.4 |
| weight | |
| External dimensions (mm) (length × width × height) | 845*1372*1648mm |
High precision counting: Using advanced sensing technology, it can accurately count every pill or capsule with minimal error.
Fully automatic operation: The equipment operates automatically throughout the entire process, reducing manual intervention, greatly improving production efficiency, and reducing human errors.
Multiple counting modes: Supports multiple counting modes, capable of handling particles such as pills, capsules, etc. of different sizes, shapes, and materials.
Conveyor belt design: Equipped with an automatic conveyor belt system, ensuring that the counted pills are quickly and accurately fed into the packaging container.
Easy to operate: Set through the touch screen control panel, the operation is simple and intuitive, and the counting target can be adjusted according to production needs.
Efficient production capacity: suitable for large-scale production, can greatly improve the efficiency of drug packaging, and is suitable for use in high-speed production lines.
Convenient cleaning and maintenance: The design emphasizes the convenience of cleaning and maintenance, and regular cleaning ensures the long-term efficient operation of the equipment.
Pharmaceutical industry: widely used in automated counting and packaging of drugs, especially suitable for large-scale production pharmaceutical companies.
Nutritional industry: used for counting and packaging various health products, capsules, and tablets.
Food industry: suitable for counting and packaging granular foods such as candy, chocolate, nuts, etc.
Cosmetics industry: used for counting and packaging various cosmetic particles and capsules.
