+Production DescriptionAutomatic Vertical Weighting Packing Machine for Food/Chemical/Pharmaceutical PackagingBVL-520 Vertical Packing Machine is an efficient vertical packaging equipment that integrates automatic measurement, bag making, filling, sealing, and bag cutting. It is suitable for packaging various particles, powders, or small pieces of materials. This device adopts advanced PLC control system and touch screen operation, which has the advantages of high stability, easy operation, and ......

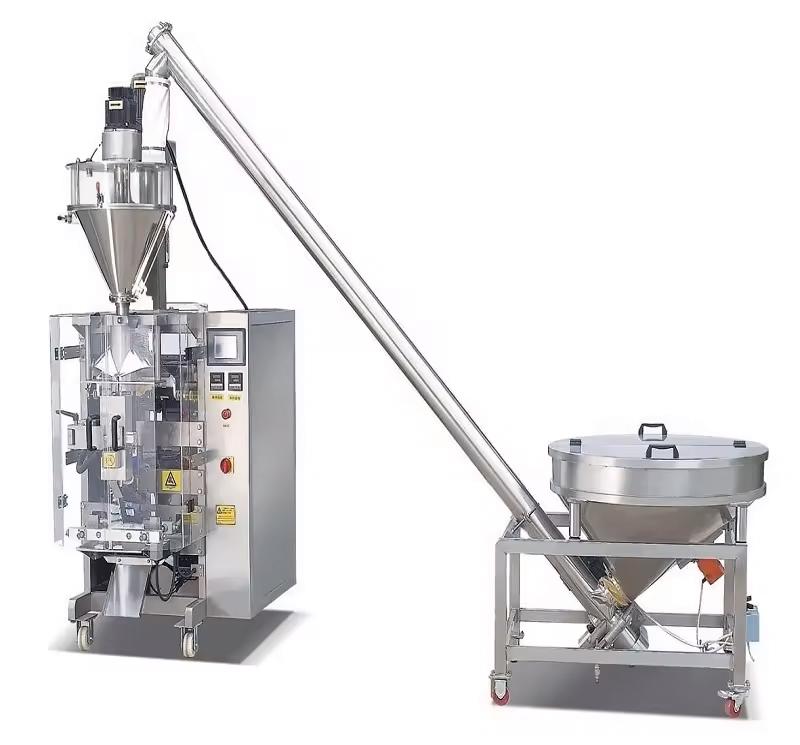

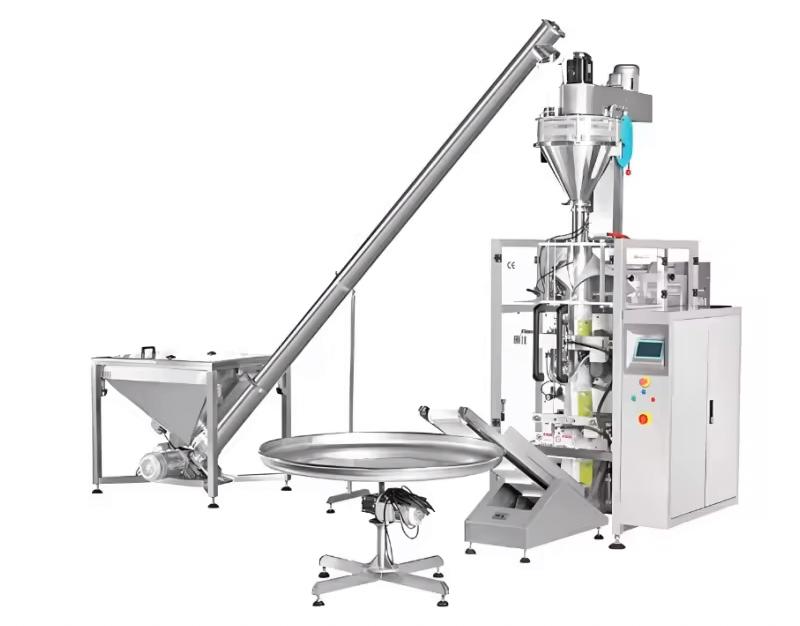

BVL-520 Vertical Packing Machine is an efficient vertical packaging equipment that integrates automatic measurement, bag making, filling, sealing, and bag cutting. It is suitable for packaging various particles, powders, or small pieces of materials. This device adopts advanced PLC control system and touch screen operation, which has the advantages of high stability, easy operation, and convenient maintenance. Widely used in various industries such as food, medicine, chemical industry, agriculture, etc., it is particularly suitable for the needs of medium and large-sized bag packaging.

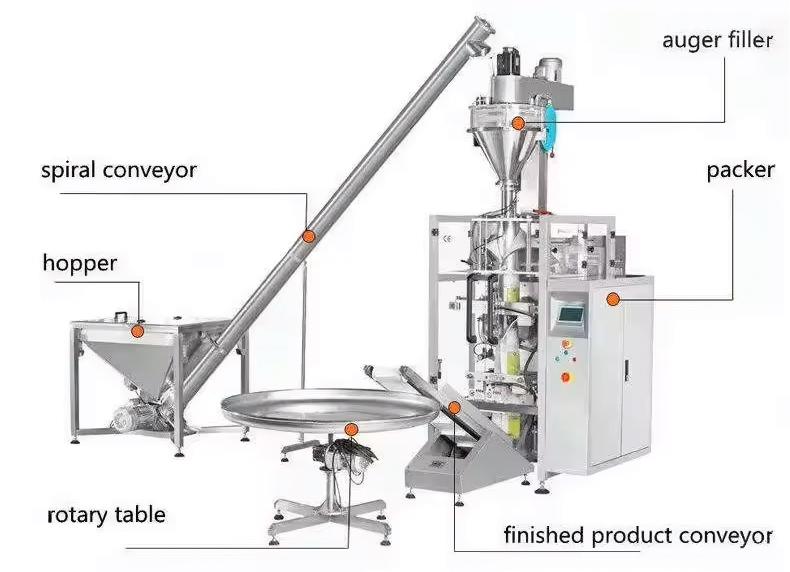

Film roll feeding: The packaging material (roll film) is installed on the film rack and transported to the bag forming machine through a tensioning shaft;
Bag making and forming: roll the plane film material into a cylinder through the forming machine;
Vertical sealing edge: Seal the two sides of the film material to form a cylindrical bag shape;
Automatic material filling: Measuring devices (such as measuring cups, weighing systems, spiral meters) automatically fill materials into bags;
Horizontal sealing and cutting: seal the upper and lower openings of the bag and automatically cut it to form a single independent packaging bag;
Finished product output: The packaged bags are discharged from the discharge port and can be connected to conveyor belts or coding equipment.
| Model | BVL-520 |
|---|---|
| Packing film | OPP/CPP,CPP/PE ,etc composite materials can be hot sealing, require to use in roll. external diameter≤400 mm,inner shaft diameter 75mm;The surface of packing film must smoothly, Not have wavy on the edges, within 10mm of edge can not print words and figure, the mark and packaging film base color contrast to sharp. |
| Making bag size | (W) 90-250mm; (L) 80-360mm,the length can up to 450mm after pushing the belt second time. |
| Packing speed | 5-70bags/min |
| Thickness of packing film | 0.05-0.10mm |
| Powder | 3.2 kW |
| Air consumption | 0.7MPa 300L/min |
| Dimension | W118*L150*H153 (cm) |
| Weight | 650kg |
Wide applicability: can package materials such as granules, powders, liquids, sauces, etc. (with different measuring devices replaced);
Large packaging range: suitable for bag types with a width between 50mm-250mm and a bag length of up to 350mm;
Intelligent control system: equipped with PLC+touch screen, can accurately set packaging parameters, intuitive operation;
High degree of automation: realizing the entire process of automatic feeding, measuring, bag making, sealing, and bag cutting;
Stainless steel structure: meets food grade hygiene standards and is easy to clean;
Multiple sealing styles: supports customization of bag types such as back sealing, three side sealing, four side sealing, and corner inserting bags;
Compatible with various packaging materials, such as OPP/CPP, PET/PE, aluminum foil composite film and other heat sealing materials;
Flexible selection: optional coding machine, inflation device, exhaust device, corner insertion device, etc.
Food industry: candy, rice, cereal, nuts, seasonings, dried fruits, instant coffee, etc;
Pharmaceutical industry: traditional Chinese medicine granules, health product granules, powder drugs, etc;
Chemical industry: fertilizers, laundry detergent, granular chemical raw materials;
Agricultural industry: seeds, feed, pet food;
Daily chemical industry: laundry granules, laundry detergent, small particle soap, etc.
If you are looking for the Vertical Packing Machine BVL-520, please feel free to contact us anytime!
